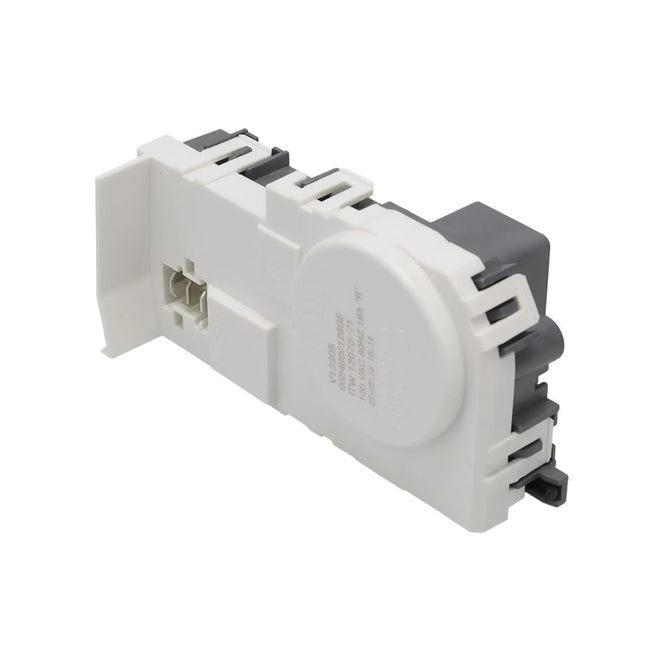

XPARTCO WH01X29528 Washer Door Lock The XPARTCO WH01X29528 is an aftermarket replacement door lock assembly compatible with a wide range of GE, GE Profile, Café, Haier, Hotpoint, RCA, and Monogram front-load washing machines — as well as select GE UltraFast 2-in-1 combo washer/dryer units. The door lock is a safety mechanism mounted at the front of the washer where the door closes — it automatically engages when the door is shut, securing it closed for the entire wash and spin cycle so water and detergent can't spill out and cause injury. It also signals the control board that the door is safely locked, which is what allows the washer to start filling and running. When the door lock fails, the washer typically won't start, won't lock the door, stops mid-cycle, or throws a door-related error code. Rated 120 VAC, 60Hz, 16A. Failure usually comes from physical damage or normal wear over time. As a direct replacement for the GE WH01X29528, it also replaces AP6985313, EAP12749276, PS12749276, PD00060769, and 4958749 (additional production markings: ITW 12070-71, V13305, 0024000128GE). Installation is straightforward with no wiring modifications — remove the old lock and install the new one, typically in 10–15 minutes with basic hand tools. Quick Answer The XPARTCO WH01X29528 Washer Door Lock fixes GE, GE Profile, Café, and Haier front-load washers (and GE UltraFast 2-in-1 combo units) where the door won't lock or unlock, the washer won't start, the washer stops mid-cycle, the door feels loose or won't seal, or a door-latch error code appears. 120 VAC, 60Hz, 16A. Replaces AP6985313, EAP12749276, PS12749276, PD00060769, 4958749. Compatible with GE GFW510, GFW550, GFW650, GFW850, PFW870, PFW950, PFQ97 series front-load washers. No wiring modifications — installs in 10–15 minutes. Common Problems This Part Fixes Washer door won't lock at the start of the cycle Washer won't start — control board not detecting a locked door Washer door won't unlock at the end of the cycle Washer stops mid-cycle due to a door lock fault Door-latch related error code displayed on the control panel Door feels loose or doesn't seal properly Excessive noise and shaking while the washer is running (related to a door not securing properly) Intermittent locking — washer sometimes starts, sometimes doesn't Door lock assembly visibly broken, cracked, or with a failed latch Burning/electrical smell or humming from the door lock area (failed lock solenoid) Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This washer door lock directly replaces the following OEM and cross-reference part numbers: WH01X29528, 4958749, AGE26402, AP6985313, PS12749276, EAP12749276, PD00060769, ITW 12070-71, OEM20955948, V13305, 0024000128GE If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This door lock assembly is compatible with select front-load washing machines and combo washer/dryer units from the following brands: GE front-load washers — GFW510 series (GFW510SCN0WW–SCN5WW, GFW510SCV0WW) GE front-load washers — GFW550 series (GFW550SPN0DG–SPN3DG, GFW550SPR0RS/SPR3RS/SPR4RS/SPR5RS, GFW550SSN0WW–SSN5WW) GE front-load washers — GFW650 series (GFW650SPN0SN–SPN4SN, GFW650SSN0WW–SSN4WW) GE front-load washers — GFW655 series (GFW655SPV0DS, GFW655SSV0WW) GE front-load washers — GFW850 series (GFW850SPN0DG–SPN5RS all DG/RS variants, GFW850SSN0WW–SSN5WW) GE Profile front-load washers — PFW870 series (PFW870SPV0RS, PFW870SSV0WW), PFW950 series (PFW950SPT0DS/SPT1DS/SPT2DS) GE Profile combo units — PFQ97HSPV0DS (UltraFast 2-in-1 combo washer/dryer) GE Café, Haier, Hotpoint, RCA, Monogram — select front-load models using the same door lock Sears Kenmore and Crosley — select GE-built front-load models Always verify your appliance model number before ordering. The WH01X29528 fits the specific models listed — please double-check your model number. Contact our support team if you're unsure. Key Features Door lock and switch assembly — locks the washer door during the wash and spin cycles and signals the control board that the door is safely closed Prevents the door from being opened mid-cycle, keeping water and detergent safely contained Resolves "won't lock," "won't unlock," "won't start," "stops mid-cycle," and door-latch error codes when caused by a failed lock Rated 120 VAC, 60Hz, 16A — correct electrical specifications for compatible GE front-load washers Integrates with the washer's main control board, door switch, and load detection system Durable, moisture-resistant materials resist deformation, wear, and short circuits for long service life No wiring modifications required — direct-fit replacement using the original connector Replaces AP6985313, EAP12749276, PS12749276, PD00060769, and 4958749 Compatible with GE GFW510/GFW550/GFW650/GFW850, PFW870/PFW950, and PFQ97 series front-load washers and UltraFast combo units, plus select Café, Haier, Hotpoint, RCA, Monogram, Kenmore, and Crosley GE-built models Aftermarket replacement built to OEM-equivalent quality standards Quick DIY repair — installs in 10–15 minutes with basic hand tools Product Specifications Part Number XPWH01X29528 Part Type Washer Door Lock and Switch Assembly Condition Aftermarket Replacement Application Front-Load Washers & Combo Washer/Dryer Units (GE platform) Voltage 120 VAC Frequency 60 Hz Amperage 16A Additional Production Markings ITW 12070-71, V13305, 0024000128GE Function Locks door during wash/spin; signals control board door is secure Location Front of washer at the door opening Compatible Brands GE, GE Profile, Café, Haier, Hotpoint, RCA, Monogram, Kenmore, Crosley Installation Notes ⚠️ Unplug Washer Before Starting — Wear Work Gloves Disconnect power before beginning. Wear work gloves to protect your hands. Open the washer door — if the door is stuck locked because of a failed lock, you may need to access the manual release. Peel back the rubber door boot/gasket from the front panel edge near the lock to expose the door lock assembly — on some models this requires releasing the spring-loaded wire clamp that secures the boot with needle-nose pliers. Photograph the wire harness connection before disconnecting anything. Remove the mounting screws holding the door lock assembly to the front panel. Reach in and pull the assembly out through the door opening far enough to access the wire connector. Disconnect the wire harness plug from the old assembly (no wiring modifications are needed — it's a direct plug connection). Snap the new WH01X29528 assembly onto the wire harness plug until it clicks firmly, position it in the front panel opening, and secure it with the mounting screws. Press the rubber door boot back into its groove and reinstall the spring-loaded wire clamp if applicable. Restore power and test by closing the door and starting a cycle — confirm the door locks, the washer runs, and the door unlocks at the end. Tools needed: Phillips screwdriver, needle-nose pliers, work gloves. Frequently Asked Questions My GE washer won't start and shows a door error — is this the part? Very likely, yes. GE front-load washers won't start unless the control board receives confirmation from the door lock that the door is closed and locked — it's a safety interlock. When the door lock fails, the washer either won't lock the door, won't start, or displays a door-related message on the panel. If your door appears to close normally but the washer won't begin the cycle (or stops shortly after starting), the door lock is the most common cause. Replacing the WH01X29528 typically resolves it. If you've already replaced the door lock and the problem persists, the issue may be the main control board instead. I replaced the door lock and it worked briefly, then failed again — what's wrong? If a new door lock works for a short time (seconds to minutes) and then the washer goes back to showing a door error, the problem may not be the lock itself but the main control board that powers and monitors it. A control board with a failing door-lock circuit can damage or fail to properly drive the lock, causing repeated symptoms even after replacing the lock. Some customers report an electrical smell or humming from the lock in these cases. If you've replaced the door lock (especially more than once) and the door error returns, the main control board is the next component to investigate. Contact our support team with your model number for the correct control board part. Does this fit the GE UltraFast 2-in-1 combo washer/dryer? Yes — the WH01X29528 is used on select GE UltraFast 2-in-1 combo washer/dryer units (such as the PFQ97HSPV0DS) in addition to standalone GE front-load washers. The combo units use the same door lock design as the front-load washers in the GFW/PFW families. As always, confirm your specific model number against the compatibility list before ordering, since GE uses different door locks across different washer generations. How do I open the door if it's stuck locked and the washer won't run? If the door is stuck in the locked position because of a failed lock, first make sure there's no water in the drum (run or complete a drain cycle if possible). Then unplug the washer and wait a few minutes — some GE models release the lock after power is removed. If it's still stuck, most front-load washers have a manual release mechanism accessible from behind the lower kick panel at the front of the machine — a tab or cord you pull to manually disengage the lock. Consult your model's manual for the manual release location. Once the door is open, you can proceed with replacing the lock. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured from durable, moisture-resistant materials to match the electrical specifications (120 VAC, 60Hz, 16A), connector configuration, mounting, and door-locking function of the original WH01X29528 door lock used in compatible GE, GE Profile, Café, Haier, and related front-load washers and combo units. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

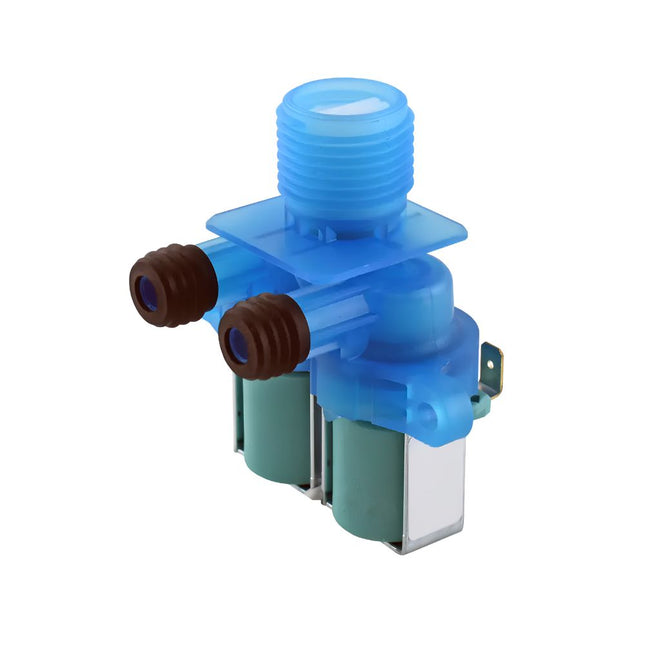

XPARTCO W11168740 Washer Water Valve (Cold Side) The XPARTCO W11168740 is an aftermarket replacement cold water inlet valve for Whirlpool-built top-load washers, located on the top back of the cabinet where the hot and cold supply hoses connect. Unlike its companion hot-side valve (sold separately as W11168743, a single-solenoid design), this cold valve uses two internal solenoid coils in one blue-bodied housing. When the control calls for a cold fill, it energizes the appropriate solenoid to open the water path; once the correct level is reached, it closes again. Because it's a dedicated cold-only valve, a failure here produces a distinctive symptom: cold-only fills stop working, slow down dramatically, or don't stop when they should, while hot fills (governed by the separate hot valve) continue working independently. Rated 120V, 60Hz, with push-on outlet connections sealed by rubber grommets. Common failure causes include mineral or sediment buildup that prevents the valve from sealing, a burned-out solenoid coil, or a worn seal at the outlet connection. It directly replaces WPW10240949, W10240949, W10921514, 33390069, 4546379, AP6285450, PD00038781, and PS12348073. Quick Answer The XPARTCO W11168740 Washer Water Valve (Cold Side) fixes Whirlpool-built top-load washers where cold water won't fill, fills slowly, keeps filling and won't stop, leaks, or throws a fill-related error code — while hot water fills normally. Blue-bodied, 2-solenoid cold-only valve, 120V, 60Hz, push-on outlet with rubber grommets. Replaces WPW10240949, W10240949, W10921514, 33390069, 4546379, AP6285450, PD00038781, PS12348073. This is the cold-side valve only — the companion hot-side valve is sold separately as W11168743. Common Problems This Part Fixes Washer won't fill with cold water while hot water fills normally Cold water fills much more slowly than it used to Washer keeps filling with cold water and won't stop, leading to overfill Water leaking at the cold connection point Fill-related error code displayed on the control panel Cycle stalling at the fill step and never advancing to wash Cold wash or cold rinse cycles specifically affected while other cycles run fine Water pooling underneath or behind the washer near the cold supply connection Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This washer cold water inlet valve directly replaces the following OEM and cross-reference part numbers: W11168740, WPW10240949, W10240949, W10921514, 33390069, 4546379, AP6285450, AWP43125, EAP12348073, PD00038781, PS12348073 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This cold water inlet valve is compatible with select Whirlpool-built top-load washers across the Whirlpool family of brands, including: Whirlpool top-load washers — WTW series Maytag top-load washers (select Whirlpool-built models) Select Kenmore top-load washers built on the Whirlpool platform Verified model numbers include: WTW5500XL0, WTW5500XL2, and WTW5640XW3. Note — cold side only: This is the cold water valve, identifiable by its blue body and two internal solenoids. The matching hot water valve for these same washers is sold separately under part number W11168743 — a single-solenoid design. The two are not interchangeable. If both valves need replacement, order both part numbers. Always verify your full model number before ordering. Contact our support team with your model number if you're unsure. Key Features Aftermarket replacement dedicated cold water inlet valve for Whirlpool-built top-load washers Two internal solenoid coils in one blue-bodied housing, identifiable at a glance from the single-solenoid hot valve Resolves "won't fill with cold water," "fills slowly," "won't stop filling," and "leaking at the connection" symptoms caused by valve failure Rated 120V, 60Hz Push-on outlet connections sealed with rubber grommets Approximately 3-3/8"L x 3-1/2"W x 2-3/8"H Direct drop-in replacement — no modification required Replaces WPW10240949, W10240949, W10921514, 33390069, 4546379, AP6285450, PD00038781, and PS12348073 Compatible with a wide range of Whirlpool, Maytag, and Kenmore top-load washers Aftermarket replacement built to OEM-equivalent quality standards Product Specifications Part Number XPW11168740 OEM Part Number W11168740 Part Type Washer Water Inlet Valve — Cold Side Condition Aftermarket Replacement Application Top-Load Washers (Whirlpool-Built) Voltage 120V Frequency 60 Hz Solenoids 2 (dedicated cold water function) Color Blue / Teal / Black Material Plastic and metal Outlet Connection Push-on with rubber grommets Dimensions Approx. 3-3/8"L x 3-1/2"W x 2-3/8"H Companion Part W11168743 (hot water valve, sold separately) Quantity 1 valve Compatible Brands Whirlpool, Maytag, Kenmore Installation Notes ⚠️ Shut Off Water Supply And Unplug Washer Before Starting — Have A Towel Ready Unplug the washer or shut off its circuit breaker, and shut off both the hot and cold water supply valves before beginning. Wear work gloves. Disconnect the cold water supply hose from the back of the valve first — have a towel or shallow pan ready, since residual water will spill out. Remove the screws securing the top panel (a 1/4" nut driver or socket handles most models), then slide the panel back and lift it off to access the valve assembly from inside the cabinet. Photograph the wiring connections before disconnecting anything, since the hot and cold valves sit next to each other and it's easy to cross a wire. Disconnect the electrical connector(s) from the old cold valve, disconnect the push-on outlet hose (check the rubber grommet for wear and replace it if it looks flattened or cracked), remove the two mounting screws holding the valve, and pull it free — leave the hot valve (W11168743) undisturbed if it isn't also being replaced. Install the new W11168740 in the same position, secure the mounting screws, reconnect the electrical connector(s), and press the outlet hose back onto its fitting with the grommet properly seated. Reattach the cold water supply hose, tightening securely by hand plus a partial turn with pliers. Reinstall the top panel, restore the water supply, and check every connection you touched for leaks before restoring power. Run a short cycle and confirm cold water fills at the normal rate, and stops when it should, with no leaking underneath or behind the washer. Tools needed: 1/4" nut driver or socket, Phillips screwdriver, pliers, towel or shallow pan, work gloves. Frequently Asked Questions Cold water won't fill but hot water works fine. Is this the right part? Yes — that's exactly the symptom pattern this valve addresses. Since your washer uses separate hot and cold valves rather than one combined valve, a fault on the cold side only affects cold fills while the hot valve keeps working independently. If cold-specific cycles are the ones failing while hot cycles are unaffected, this cold-side valve is the correct part to replace. How can I tell this valve apart from the hot-side valve just by looking at it? This cold valve has a blue body and two internal solenoid coils, while the companion hot-side valve (W11168743) is a single-solenoid design. If you're staring at the old valve trying to confirm which one you're removing, the color and solenoid count are a quick visual check. Do I need to replace both the hot and cold valves at the same time? Not necessarily. Since these are independent single-function valves, you only need to replace the one that has actually failed. If only cold fills are affected, replacing this W11168740 valve alone is sufficient. Some people choose to replace both while the top panel is already off, especially on an older washer, but it isn't required. My washer keeps filling with cold water and won't stop. Is that dangerous? It can lead to overflow and water damage if left unaddressed, so it's worth shutting off the water supply at the wall if this happens rather than waiting. A valve that won't stop filling usually means a worn internal seal is no longer sealing shut when the solenoid de-energizes, letting water continue flowing. This valve is the correct replacement for that symptom. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the dual-solenoid design, connection type, and dimensions of the original W11168740 cold water valve used in compatible Whirlpool, Maytag, and Kenmore top-load washers. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO AJU75152601 Washer Water Inlet Valve Replaces 5221EA1008F, AJU73213301 The XPARTCO AJU75152601 is an aftermarket replacement washer water inlet valve assembly compatible with select LG and Kenmore top-load washers in the WT1, WT4, WT5, WT6, and WT7 series. This is a multi-port valve assembly that controls water flow from the household supply lines into the washer tub and dispenser compartments. The assembly contains multiple solenoid-operated valve ports: hot water inlet, cold water inlet, bleach dispenser valve, fabric softener dispenser valve, and jet spray valve — all integrated into a single assembly that connects to the washer's control board via wiring harnesses. When the water inlet valve fails — or when one individual port fails — the washer may not fill at all, fill too slowly, fill with the wrong temperature, overfill, fail to dispense bleach or fabric softener, or leak from the valve body. The valve solenoids operate at 12V DC. This kit includes the complete valve assembly and two AGM73269501 inlet screens. It directly replaces AJU73213301, 5221EA1008F, 5221EA1008P, AGF76283896, AP6308239, TAW35618287, AH3527446, AJU75152603, EA3527446, PS3527446, and PS12374721. Installs in 15–25 minutes with basic hand tools. Quick Answer The XPARTCO AJU75152601 Washer Water Inlet Valve fixes LG and Kenmore top-load washers that won't fill, fill slowly, fill with wrong temperature, won't dispense bleach or fabric softener, overfill, or leak from the valve. Multi-port assembly with hot, cold, bleach, fabric softener, and jet spray valves. 12V DC solenoids. Includes 2 AGM73269501 inlet screens. Compatible with LG WT1xxx–WT7xxx and Kenmore 796-series. Replaces AJU73213301, 5221EA1008F, 5221EA1008P, AP6308239, TAW35618287, PS12374721. Common Problems This Part Fixes Washer not filling with water at all when a cycle is started Washer filling very slowly — one or more valve ports partially blocked or failing Washer filling with only hot or only cold water — one temperature solenoid has failed Washer overfilling or filling continuously — valve port stuck open Bleach dispenser not dispensing during the wash cycle Fabric softener not dispensing at the correct rinse cycle point Jet spray not activating during fill Water dripping into the tub between cycles — valve port not closing completely Water leaking from the valve body or connection points at the back of the washer Replaces Part Numbers This water inlet valve directly replaces the following OEM and cross-reference part numbers: 5221EA1008F, AJU73213301, AJU75152601, AH3527446, AJU75152603, EA3527446, PS3527446, ALG53778, AP6308239, PD00042814, PS12374721, TAW35618287. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This water inlet valve is compatible with select LG and Kenmore top-load washers from the following series: LG top-load washers — WT1 series (WT1101CW, WT1201CW, WT1201CV, WT1301CW, WT1501CW, WT1701CW, WT1701CV, WT1801HVA, WT1801HWA and related models) LG top-load washers — WT4 series (WT4801CW, WT4870CW, WT4970CW and related models) LG top-load washers — WT5 series (WT5001CW, WT5070CW, WT5101HV, WT5101HW, WT5170HV, WT5270CW, WT5480CW, WT5680HVA, WT5680HWA and related models) LG top-load washers — WT6 series (select models) LG top-load washers — WT7 series (WT7200CW, WT7200CV, WT7500CW, WT7600HKA and related models) Kenmore / Sears top-load washers — 796-series (79631512210, 79631512211, 79631522211, 79631502210, 79631502211 and related models) Note: Always verify your exact model number before ordering. Newer LG WT7100/WT7150/WT7400/WT7405 series models use the AJU75152602 valve instead. Contact our support team with your model number to confirm the correct valve for your washer. Key Features Multi-port valve assembly — controls hot water, cold water, bleach dispenser, fabric softener dispenser, and jet spray from a single replaceable assembly 12V DC solenoid operation — responds to signals from the washer's control board to deliver the correct water to each compartment Resolves fill, dispenser, overfill, and drip-when-off symptoms in a single replacement Kit includes complete valve assembly and 2x AGM73269501 replacement inlet screens ABS plastic and stainless steel construction — durable and resistant to mineral buildup Replaces AJU73213301, 5221EA1008F, 5221EA1008P, AP6308239, TAW35618287, and over 10 additional cross-reference numbers Compatible with LG WT1xxx through WT7xxx and Kenmore 796-series top-load washers Aftermarket replacement built to OEM-equivalent quality standards DIY repair — installs in 15–25 minutes with basic hand tools Product Specifications Part Number AJU75152601 Also Replaces AJU73213301, 5221EA1008F (current supersession) Part Type Washer Water Inlet Valve Assembly (Multi-Port) Condition Aftermarket Replacement Application LG and Kenmore Top-Load Washers Valve Ports Hot water, cold water, bleach dispenser, fabric softener dispenser, jet spray Solenoid Voltage 12V DC Material ABS plastic / Stainless steel Kit Includes Valve assembly + 2x AGM73269501 inlet screens Compatible Series LG WT1xxx, WT4xxx, WT5xxx, WT6xxx, WT7xxx; Kenmore 796-series Compatible Brands LG, Kenmore Installation Notes ⚠️ Unplug Washer and Shut Off Water Before Starting Disconnect power and turn off both the hot and cold water supply valves before beginning. Pull the washer away from the wall to access the back panel. The water inlet valve assembly is mounted on the upper rear of the washer — the external supply hoses connect to the hot and cold inlet ports. Photograph all wire harness connections and hose routing before disconnecting anything. Before installing, install the new inlet screens (AGM73269501) included in the kit into the hot and cold inlet ports of the new valve. Disconnect the old valve's external supply hoses, internal hoses, and wire harness connectors. Unscrew the mounting screws and remove the old valve. Install the new AJU75152601 valve, reconnect all hoses and wire harnesses in the same positions as documented in your photos, and secure the mounting screws. Reconnect the external supply hoses, restore water supply and power, and run a fill cycle to verify proper filling, confirm all dispenser ports activate at the correct cycle points, and check for leaks. Tools needed: Phillips screwdriver, pliers. Frequently Asked Questions What is the difference between AJU75152601, AJU73213301, and 5221EA1008F? These are all part numbers for the same LG washer water inlet valve assembly used across different production runs. 5221EA1008F was the original part number, AJU73213301 was an updated version, and AJU75152601 is the current part number. All three are interchangeable. If your washer's documentation, parts diagram, or old valve label shows any of these numbers, this replacement is the correct current part to order. My washer won't dispense fabric softener — is this the right part? Yes — the fabric softener dispenser solenoid is one of the ports integrated into the AJU75152601 valve assembly. When the fabric softener dispenser fails to activate at the right point in the rinse cycle, it is almost always because the solenoid valve controlling that port has failed. Since it is part of the same multi-port valve assembly, replacing the AJU75152601 resolves fabric softener, bleach, and jet spray dispenser issues in the same repair. Individual ports cannot be replaced — the complete assembly must be replaced when any one port fails. What are the AGM73269501 inlet screens included in the kit? The AGM73269501 screens are small mesh filters that install inside the hot and cold water inlet ports of the valve. They trap mineral deposits and debris from the household water supply before they can reach the valve seats and solenoid mechanisms. The kit includes two screens — one for the hot inlet and one for the cold inlet. Installing these fresh screens with the new valve helps extend valve life, especially in areas with hard water. If the old valve failed due to mineral clogging rather than solenoid failure, cleaning the supply hoses before installation is also recommended. How do I know if the water inlet valve has failed vs. the control board? You can test the valve solenoids with a multimeter. Disconnect the harness from a solenoid coil and probe both terminals — a working solenoid coil shows a resistance reading (typically 200–500 ohms); an open circuit confirms the solenoid has failed. If all solenoid coils test good but the valve still does not operate, the control board may not be sending the correct 12V DC signal to the solenoids — this requires checking voltage at the solenoid connectors with the washer powered and in a fill cycle, which is a more advanced diagnostic step. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine LG OEM part, but is manufactured from ABS plastic and stainless steel to match the port configuration, solenoid specifications, and dimensions of the original AJU75152601 water inlet valve assembly. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

5220FR2006H Washer Hot Water Inlet Valve - Compatible with LG, Kenmore Product Description Ensure proper water flow with the replacement 5220FR2006H Washer Hot Water Inlet Valve. This replacement water inlet valve is designed for select LG and Kenmore front-load and top-load washers, featuring one solenoid to control hot water entry into the drum. It addresses issues like no water flow, leaks, improper filling, or error codes, offering a cost-effective alternative to OEM parts. Note: Includes one water inlet valve with one solenoid. Disconnect power and water supply before installation. Check water supply lines and valve filters for blockages to ensure optimal performance. Replaces part numbers: 5220FR2006H, 1268123, 5220FR1280F, 5220FR2006L, 5220FR2006Q, AH3527427, EA3527427, PD00001765, EAP3527427, AP4441935, PS3527427. Compatibility: Compatible with models including but not limited to: LG: WM2016CW, WM2077CW, WM2277HW, WM2455HW, WM2487HRM, WM2601HW, WM2701HV, WM2801HWA, WM3070HWA, WM3470HWA, WM8000HVA, WM9000HVA Kenmore: 796.40272800, 796.41022900, 796.41028900 Verify your model number or contact our support team for assistance. Key Features: ✅ Brand and Models Compatibility: Fits select LG and Kenmore front-load and top-load washers. 💧 Specifications: replacement water inlet valve with one solenoid, 120V, 60Hz. 💰 Cost-Effective Alternative: Offers OEM-equivalent performance at a lower price. 🛠️ Easy Installation: Requires screwdriver, pliers, work gloves; typically installed in 20–30 minutes. 🛡️ Effective Fixes: Resolves no water flow, leaks, improper filling, or error codes. Product Specification Part Number: 5220FR2006H Component Type: Washer hot water inlet valve Material: High-grade plastic and metal Electrical Specs: 120V, 60Hz, one solenoid. Mounting: Screw-mounted near washer water inlet Operating Conditions: Suitable for high-pressure water supply environments Compliance: Prop 65 warning for California Installation Notes: Safety First: Disconnect the washer from the power source and water supply before installation. Shop for high-quality replacement appliance parts with a 30-day return policy. Keep your washer running smoothly today! Add to cart now for a budget-friendly fix!

Read more less

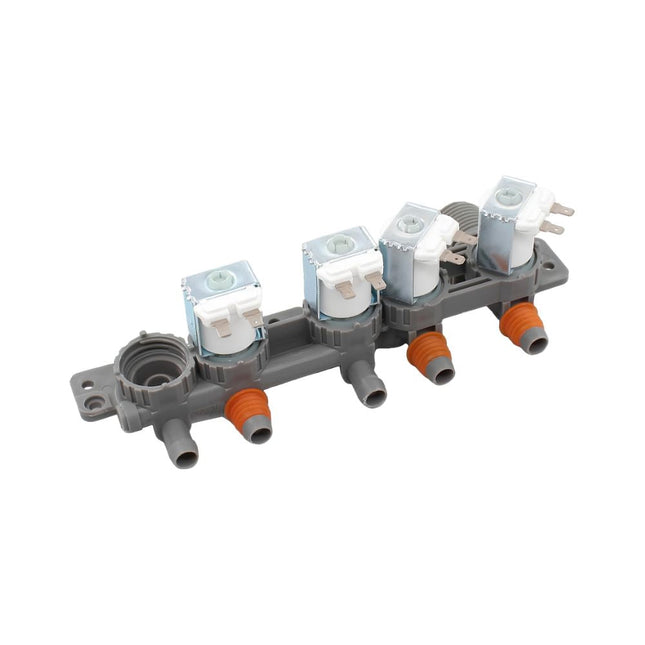

XPARTCO AJU75152602 Washer Water Inlet Valve The XPARTCO AJU75152602 is an aftermarket replacement washer water inlet valve assembly compatible with select LG and Kenmore top-load washers in the larger-capacity WT7 series — including the WT7060, WT7100, WT7150, WT7155, WT7250, WT7300, WT7305, WT7400, WT7405, WT7800, WT7880, and WT7900 series. The water inlet valve is a multi-port solenoid valve mounted on the back of the washer that controls the flow of hot and cold water into the tub and dispenser compartments during fill and rinse cycles. When any valve port fails, the washer may not fill at all, fill too slowly, fill with the wrong water temperature, overfill, or leak from the valve body. This valve assembly directly replaces 5221EA1008S, 4873914, AP6335382, EAP12580369, PS12580369, and PD00060681. It includes two integrated inlet screens to filter debris from the supply lines. Installs in 15–25 minutes with basic hand tools. Note: the AJU75152602 is for the WT7xxx larger-capacity LG top-load series — it is not the same valve as the AJU75152601, which is used on the earlier and smaller-capacity WT1xxx through WT5xxx series. Verify your model number before ordering. Quick Answer The XPARTCO AJU75152602 Washer Water Inlet Valve fixes LG WT7xxx-series top-load washers that won't fill, fill slowly, fill with wrong temperature, overfill, or leak from the valve. Includes 2 inlet screens. Replaces 5221EA1008S, 4873914, AP6335382, EAP12580369, PS12580369, PD00060681. Compatible with LG WT7060, WT7100, WT7150, WT7300, WT7305, WT7400, WT7405, WT7800, WT7880, WT7900 series and Kenmore (LG-built). Note: not the same as AJU75152601 — different model series. Common Problems This Part Fixes Washer not filling with water at all when a cycle is started Washer filling very slowly — taking much longer than normal to reach water level Washer filling with only cold water on a warm or hot cycle — hot solenoid failed Washer filling with only hot water on a cold cycle — cold solenoid failed Washer overfilling or filling continuously — valve port stuck open Water temperature incorrect despite correct cycle selection Water dripping into the tub between cycles — valve not sealing completely Water leaking from the back of the washer near the valve body Replaces Part Numbers This water inlet valve directly replaces the following OEM and cross-reference part numbers: AJU75152602, 4873914, 5221EA1008S, U8EONG(9F), IV-248-103, PD00060681, FIX12580369, ALG53788, AP6335382, PS12580369, DC12V 6W, IV-248-103, U8EONG(9F). If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This water inlet valve is compatible with select LG WT7 series top-load washers and related Kenmore models: LG WT7060CV, WT7060CW LG WT7100CW LG WT7150CW, WT7155CW LG WT7250CW LG WT7300CV, WT7300CW LG WT7305CV, WT7305CW LG WT7400CV, WT7400CW LG WT7405CV, WT7405CW LG WT7800CV, WT7800CW LG WT7880HWA LG WT7900HBA Kenmore 31452 and select LG-built Kenmore models Important — AJU75152602 vs AJU75152601: These are two different valves for different LG washer generations. The AJU75152602 is for the larger-capacity WT7xxx series. The AJU75152601 is for the earlier and smaller-capacity WT1xxx through WT5xxx series. They are not interchangeable. Always verify your model number before ordering. Key Features Multi-port solenoid valve — controls hot water, cold water, and dispenser ports to deliver the correct water temperature and volume for each cycle phase Includes two integrated inlet screens — filter debris and mineral deposits from the supply lines before they reach the valve seat ABS plastic and stainless steel construction — durable and resistant to mineral buildup and corrosion Replaces 5221EA1008S, 4873914, AP6335382, EAP12580369, PS12580369, and PD00060681 Compatible with LG WT7060, WT7100, WT7150, WT7300, WT7305, WT7400, WT7405, WT7800, WT7880, WT7900 series and Kenmore LG-built models For WT7xxx series only — not the same as AJU75152601 (WT1xxx–WT5xxx series) Aftermarket replacement built to OEM-equivalent quality standards DIY repair — installs in 15–25 minutes with basic hand tools Product Specifications Part Number AJU75152602 Part Type Washer Water Inlet Valve Assembly (Multi-Port) Condition Aftermarket Replacement Application LG WT7xxx Series Top-Load Washers Material ABS plastic / Stainless steel Kit Includes Valve assembly + 2 integrated inlet screens Note WT7xxx series only — not interchangeable with AJU75152601 (WT1xxx–WT5xxx) Compatible Brands LG, Kenmore (LG-built) Installation Notes ⚠️ Unplug Washer and Shut Off Water Before Starting Disconnect power and turn off both the hot and cold water supply valves before beginning. Pull the washer away from the wall to access the back panel. The water inlet valve is mounted on the upper rear of the washer. Photograph all wire harness connections and hose positions before disconnecting. Disconnect the two external supply hoses from the valve inlet ports. Disconnect the internal outlet hoses by squeezing the retaining clips and pulling free. Disconnect the wiring harness connectors from each solenoid port. Unscrew the mounting screws and remove the old valve. Install the new AJU75152602 valve in the same position, reconnect all internal hoses, wire harnesses, and external supply hoses in the documented positions. Restore water supply and power, then run a fill cycle to verify normal filling and check for leaks. Tools needed: Phillips screwdriver, pliers. Frequently Asked Questions What is the difference between AJU75152602 and AJU75152601? These are two different water inlet valve assemblies for different generations of LG top-load washers. The AJU75152601 (which also replaces AJU73213301 and 5221EA1008F) is used on LG's earlier and smaller-capacity top-load washers in the WT1xxx, WT4xxx, and WT5xxx series. The AJU75152602 (which replaces 5221EA1008S) is for LG's larger-capacity WT7xxx series. Despite appearing similar, they have different port configurations and are not interchangeable. Always verify your specific model number before ordering. How do I know if the water inlet valve has failed? Common signs are the washer not filling, filling only on one temperature setting, overfilling, dripping between cycles, or leaking from the valve area. Before replacing the valve, check that both supply valves are fully open and the hoses are not kinked. You can test each solenoid coil with a multimeter — a working coil shows resistance (typically 200–500 ohms); an open circuit confirms that coil has failed. Also inspect and clean the inlet screens inside the supply port openings — mineral-clogged screens can restrict flow enough to cause the same symptoms as a failed valve. What are the two inlet screens included with the valve? The two mesh screens that come with the AJU75152602 install inside the hot and cold water inlet ports of the valve. They catch sediment, mineral particles, and debris from the household water supply before they can reach the solenoid valve seats. Installing fresh screens along with the new valve helps extend the valve's service life, especially in areas with hard water. If the previous valve failed due to mineral buildup rather than an electrical fault, cleaning the supply hoses before installation is also recommended. My LG WT7300CW is only filling with cold water — is this the valve? Filling with only cold water on a warm or hot cycle is a classic sign that the hot water solenoid coil on the inlet valve has failed. Each temperature port is controlled by its own independent solenoid — when the hot solenoid fails, only the cold port opens. Before replacing the valve, also confirm that the household hot water supply valve is fully open and that hot water is reaching the back of the washer in the supply hose. If hot water supply is confirmed and the cold-only fill persists, replace the AJU75152602 valve. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine LG OEM part, but is manufactured from ABS plastic and stainless steel to match the port configuration and specifications of the original AJU75152602 water inlet valve assembly. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

134101800 Washer Lid Lock Switch – Replacement for Frigidaire, Electrolux, Kenmore Product Overview This washer switch is both the lid lock and lid switch. New mounting bracket replaces older design. Which means in some applications you may need to drill off old design mounting bracket prior to mounting the new lock. If your replacing the 4 wire switch you will need to tape off light switch leads. The light will no longer be used. 120V, 60Hz, lid lock and switch assembly. Replaces Part Numbers This switch replaces part numbers 134101800, 131595100, 131675600, 3204390, 3204391, 3205646, 5303306138, 916791, AP2108159, PS648775. It matches original specifications for fit and performance in compatible top-load washers. Compatible Brands This lid lock switch is compatible with washers from Frigidaire, Electrolux, Kenmore, and Gibson. It fits many models built under these brands and used in U.S. and Canadian homes. Fixes the Following Issues Washer won’t start Lid lock error or flashing indicator Washer stops mid-cycle Broken or non-responsive lid switch Why Buy from Parts‑O‑Matic High-quality, tested aftermarket part Fast and free shipping across the U.S. Trusted by appliance repair pros and DIYers Easy returns and friendly customer support

Read more less

XPARTCO W11688994 Washer Water Inlet Valve (Hot) The XPARTCO W11688994 is an aftermarket replacement hot water inlet valve compatible with select Whirlpool, Maytag, Amana, KitchenAid, Jenn-Air, Magic Chef, Admiral, Norge, Roper, Inglis, and Kenmore front-load washers. The hot water inlet valve is mounted at the back of the washer where the hot water supply hose connects. When the washer's control board calls for hot water during a wash cycle, the valve's internal solenoid opens, letting hot water flow into the tub or detergent dispenser. The valve closes the instant the control board cuts power, stopping flow precisely as the correct fill level is reached. When this valve fails, the washer may not fill with hot water at all, fill very slowly with hot water, fail to deliver hot or warm wash temperatures (even when selected), continuously drip water into the tub even when off, or display fill-related error codes. Construction is red and white plastic with a metal solenoid coil, ~3"H x 4"W x 3"L, with 1/2" NPT threaded inlet for standard washer supply hose. It directly replaces W11688994, W11036928, W11316255, W11486360, and AP7218602. Often replaced as a pair with the cold water inlet valve (W11688995, sold separately). Installs in 10–15 minutes with basic hand tools. Quick Answer The XPARTCO W11688994 Washer Water Inlet Valve (Hot) fixes Whirlpool, Maytag, Amana, KitchenAid, Jenn-Air, and Kenmore front-load washers that aren't filling with hot water, fill slowly with hot water, can't reach hot or warm wash temperatures, or have continuous water dripping into the tub when off. Red/white plastic with metal coil, 1/2" NPT thread, ~3"H x 4"W x 3"L. Replaces W11036928, W11316255, W11486360, AP7218602. Often paired with the cold water valve (W11688995, sold separately). Common Problems This Part Fixes Washer not filling with hot water — valve solenoid not opening when commanded Washer filling slowly with hot water — valve partially clogged or weak solenoid No hot or warm water in selected wash temperatures — only cold water flowing in Hot wash cycle running cool — hot valve not delivering normal flow Water continuously dripping into the tub when the washer is off — hot valve stuck open or not fully closing Water leaks at the hot valve body — internal seal failure Wash cycles taking much longer than normal due to slow hot fill Fill-related error codes when hot fill is required by the selected cycle Replaces Part Numbers This hot water inlet valve directly replaces the following OEM and cross-reference part numbers: W11688994, W11316255, W11036928, W11486360, 4983330, AP7218602, AWP46795, EAP17216729, FIX17216729, OEM21655815, PD00085626, PS17216729.  If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This hot water inlet valve is compatible with select front-load washers from the following brands: Whirlpool front-load washers — 7MWFC9822HC1, 8TWFC6810LW0, WFC682CLW0, WFC6810LW0, WFC9820HC0, WFC9820HW0 series Whirlpool front-load washers — WFW560CHW0, WFW560CHW1, WFW560CHW2, WFW560CHW3, WFW560CHW4 series Whirlpool front-load washers — WFW5605MC0, WFW5605MW0 series Whirlpool front-load washers — WFW5620HW0, WFW5620HW1, WFW5620HW2, WFW5620HW3 series Whirlpool front-load washers — WFW6620HC0, WFW6620HC1, WFW6620HC2, WFW6620HW0, WFW6620HW1 series Whirlpool front-load washers — WFW8620HC0, WFW8620HC1, WFW8620HC2, WFW8620HC3, WFW8620HC4, WFW8620HW0, WFW8620HW1, WFW8620HW2, WFW8620HW3, WFW8620HW4 series Whirlpool front-load washers — WFW862CHC0, WFW862CHC1, WFW862CHC2, WFW862CHC3 series Whirlpool front-load washers — WFW9620HBK1, WFW9620HBK2, WFW9620HBK3, WFW9620HC0, WFW9620HC1, WFW9620HC3, WFW9620HW0, WFW9620HW1, WFW9620HW2, WFW9620HW3 series Maytag front-load washers — MHW5630HC0-HC3, MHW5630HW0-HW3, MHW6630HC0-HC3, MHW6630HW0-HW3, MHW8630HC0-HC4, MHW8630HW0-HW4 series Amana front-load washers — NFW5800HW0, NFW5800HW1, NFW5800HW2, NFW5800HW3, NFW5800HW4 and related models Inglis front-load washers — IFW5900HW0, IFW5900HW1, IFW5900HW2, IFW5900HW3, IFW5900HW4 and related models KitchenAid, Jenn-Air, Magic Chef, Admiral, Norge, Roper front-load washers — select Whirlpool-built models Kenmore / Sears front-load washers — select Whirlpool-built models Note: This is the hot water inlet valve (typically red). The matching cold water inlet valve is part number W11688995 (typically blue). When you replace one valve, it's a good practice to replace the other at the same time since they're the same age, both are accessible during the same repair, and the second valve will likely fail in the near term. Always verify your model number before ordering. Key Features Aftermarket replacement built to OEM-equivalent quality standards Controls the flow of hot water into the washer during fill cycles Solenoid-actuated — opens precisely when the control board calls for hot water and closes the moment the call is dropped 1/2" NPT threaded inlet for standard washer supply hose connection Dimensions: approximately 3" H x 4" W x 3" L Red and white plastic body with metal solenoid coil — heat-resistant construction designed for hot water cycle pressure and temperature Replaces W11036928, W11316255, W11486360, AP7218602, and PD00085626 Compatible with Whirlpool, Maytag, Amana, KitchenAid, Jenn-Air, Magic Chef, Admiral, Norge, Roper, Inglis, and Kenmore front-load washers Often replaced together with the cold water inlet valve (W11688995, sold separately) as a paired repair Quick DIY repair — installs in 10–15 minutes with basic hand tools Product Specifications Part Number XPW11688994 Part Type Washer Water Inlet Valve (Hot) Condition Aftermarket Replacement Application Front-Load Washers (Whirlpool platform) Water Type Hot (paired cold valve is W11688995) Inlet Thread 1/2" NPT Dimensions Approximately 3" H x 4" W x 3" L Color Red / White Material Plastic / Metal (heat-resistant) Often Paired With Cold Water Inlet Valve (W11688995, sold separately) Compatible Brands Whirlpool, Maytag, Amana, KitchenAid, Jenn-Air, Magic Chef, Admiral, Norge, Roper, Inglis, Kenmore Installation Notes ⚠️ Unplug Washer and Shut Off Water Supply Before Starting — Wear Work Gloves Disconnect power and shut off both the hot and cold water supplies at the wall before beginning. Wear work gloves to protect your hands. Have towels ready — residual water remains in the supply hoses and will spill when disconnected. Important: if the washer has just been running a hot cycle, allow the hot supply hose and valve to cool before handling — hot water can scald. Pull the washer out from the wall to access the back. Remove the three 1/4" screws securing the rear edge of the top cover, push the top cover slightly back, and lift it off. Locate the inlet valves at the back of the washer — the hot valve is typically red. Disconnect the hot water supply hose from the valve (water will drip — towels). Photograph the wire connections before disconnecting. Unplug the small electrical connector from the valve solenoid. Remove the single 3/16" mounting screw (or similar hardware, model-dependent) holding the valve in place, and disconnect any internal water hoses from the valve outlet (channel-lock pliers may help with hose clamps). Install the new W11688994 valve in the same position with the same orientation, reconnect the internal water hoses and electrical connector, and secure the mounting screw. Reconnect the hot supply hose at the wall, restore water and power, and run a test cycle on a hot or warm setting to confirm normal hot water fill with no leaks. Tip: while the top cover is off, this is the ideal time to also replace the cold water valve (W11688995) — they share the same access and lifespan. Tools needed: 1/4" nut driver, 3/16" nut driver, adjustable wrench or pliers, work gloves. Frequently Asked Questions My washer isn't filling with hot water — is the hot valve the problem? Likely, yes — that's the most common symptom of a failed hot water inlet valve. Before replacing, do a few quick checks: 1) confirm the hot water supply at the wall is turned on and your home actually has hot water at that connection (test the faucet nearby); 2) check the supply hose for kinks or pinches; 3) inspect the inlet screen on the back of the valve for sediment buildup — a clogged screen can mimic a failed valve. If the supply is good and the screen is clean, but the washer still won't get hot water, the W11688994 valve solenoid has likely failed and replacing it will resolve the issue. My washer fills but my hot wash isn't actually hot — could it still be this valve? Yes — when the hot inlet valve is partially failed (opening but not fully, or opening only briefly), the washer may complete its fill cycle by drawing extra cold water to compensate, but the resulting mix is much cooler than the selected wash temperature should be. If you've confirmed your home's hot water is hot, the supply hose is good, and you're still ending up with lukewarm "hot" washes, the hot valve is a likely cause. Replacing it restores proper hot water delivery and accurate wash temperatures. Should I replace the cold water valve at the same time? Yes, it's strongly recommended. The hot and cold inlet valves are essentially identical components installed side by side at the back of the washer — they're the same age, are exposed to the same wash cycle stress, and have the same expected service life. When one fails, the other is typically not far behind. Since the top cover is already off and both valves are accessible during the same repair, replacing both saves you a second teardown later. The matching cold water valve is part number W11688995 (blue, sold separately) and is also available as a paired kit. My washer is dripping water into the tub even when it's off — could the hot valve be the cause? Yes, that's a classic sign of a failed inlet valve. When the solenoid wears out or debris keeps the valve from sealing fully closed, water leaks past it at low rates and drips into the tub even with the washer powered off — especially noticeable as a slow puddle forming over a day or two. Since both the hot and cold valves feed into the tub, you'll want to identify which one is leaking: shut off the cold water supply at the wall and check if dripping continues. If it stops, the cold valve is at fault; if it continues, this hot valve is the cause. Replacing the W11688994 will resolve a leaking hot valve. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the dimensions, electrical specifications, 1/2" NPT thread, and solenoid function of the original W11688994 hot water inlet valve used in compatible Whirlpool, Maytag, Amana, KitchenAid, and Kenmore front-load washers. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

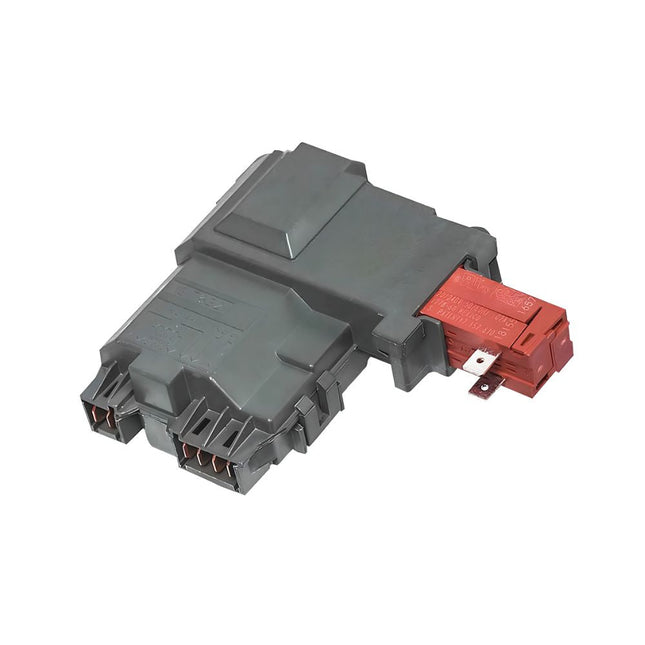

XPARTCO 131763256 Washer Door Lock Assembly Replaces WH10X27534 The XPARTCO 131763256 is an aftermarket replacement door lock and switch assembly compatible with a wide range of Frigidaire, Electrolux, GE, White-Westinghouse, Tappan, Kenmore, Crosley, and Gibson front-load washers. The door lock latch and switch assembly is mounted on the front panel of the washer just inside the door opening — when the door closes, the door strike enters the lock and engages the latching mechanism, locking the door for the duration of the cycle and signaling the control board that it's safe to fill, agitate, and spin. Without a functioning door lock, the washer will not start, will not lock the door, may stop mid-cycle, or may display fault codes like E47. This is a universal-fit aftermarket assembly that spans both the Frigidaire platform (131763xxx-series part numbers) and the GE platform (WH10X-series part numbers) — one physical part covers both manufacturers' cross-referenced door lock positions on compatible front-load washers. Rated 120VAC, 50/60Hz, with 8 terminals. Dimensions: 4-1/2"L x 3-7/8"W x 1-1/2"H. Gray and red matte finish, plastic and metal construction. It directly replaces 131763256, 131763202, 131763255, 131763200, 131763245, 1317632, 1312694, 131269400, 137523400, 1531974, 3626240, 4547033, 4547432, 5301317632, 08003223, K001317632, K1317630-K938, K1317632, LP3202, PA66-GF25, WH10X27534, WH10X10003, WH10X10007, WH10X27194, AH2367737, AH3418879, AP4455026, AP4694680, AP6285657, AP6327625, EA3418879, EAP2367737, PD00038657, PD00070219, PS2367737, PS3418879, PS12343346, and PS12364048. Often replaced together with the matching door strike (131763310, sold separately). Installs in 15–20 minutes with basic hand tools. Quick Answer The XPARTCO 131763256 Washer Door Lock Assembly fixes Frigidaire, Electrolux, GE, Kenmore, Crosley, White-Westinghouse, Tappan, and Gibson front-load washers that won't start, won't lock the door, won't spin, won't drain, won't fill, stop mid-cycle, or display E47 error codes. Universal-fit assembly — spans both Frigidaire (131763xxx) and GE (WH10X) platforms. 120VAC, 50/60Hz, 8 terminals. 4-1/2"L x 3-7/8"W x 1-1/2"H. Gray/red matte. Replaces 131763202, 131763255, 131763200, 131763245, 1317632, 131269400, 4547033, WH10X27534, WH10X10003, WH10X10007, WH10X27194, AP6285657, AP4455026, PS2367737, and 20+ more cross-references. Often paired with the door strike (131763310, sold separately). Common Problems This Part Fixes Washer won't start — control board not detecting a locked door Door won't lock at the start of the cycle Washer stops mid-cycle due to a door lock fault E47 error code displayed on the control panel Washer pumps but won't spin — spin cycle blocked by unlocked-door detection Washer won't drain — drain cycle blocked by door-lock signal loss Washer won't fill with water — fill cycle blocked by door-lock signal Door lock assembly visibly broken, cracked, or missing latch teeth Door won't unlock at the end of the cycle — stuck lock mechanism Unusual noise from the door lock area during cycle transitions Replaces Part Numbers This universal-fit door lock assembly directly replaces the following OEM and cross-reference part numbers across multiple brands: 131763256, 131763255, 131763202, 1312694, 131269400, 131763200, 131763245, 3626240, 4547033, PA66-GF25, LP3202, AFR14205, AP6285657, EAP2367737, PD00038657, PS12364048, WH10X27534, WH10X10003, 08003223, 4547432, 5301317632, K001317632, K1317630-K938, K1317632, WH10X10007, WH10X27194, AP6327625, AGE754798, PS12343346, PD00070219, PD00070219. If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This universal-fit door lock assembly is compatible with select front-load washers from the following brands: Frigidaire front-load washers — Affinity series, FAFS/FAFW/FFFS/FFFW/FRFW/FTF/FTR/FWFB/FWT/GLTF/GLEH series and many related models Electrolux front-load washers — select models with the matching door lock configuration GE front-load washers — WCCH404, WPXH214, WSSH300, WSXH208 series and related models (WH10X27534 cross-reference) White-Westinghouse front-load washers — select models Tappan front-load washers — select models Kenmore / Sears front-load washers — select Frigidaire-built and GE-built models Crosley front-load washers — BTF1240ES0, BTF1240ES1, BTF1240FS0 and related models Gibson front-load washers — select models Note: The door lock assembly (131763256) and the door strike (131763310) are two separate components that work together — if both are worn, replacing them together as a matched set ensures reliable door locking and prevents premature wear on the new lock. The strike is what physically enters the lock when the door closes. Always verify your model number before ordering. Key Features Universal-fit door lock and switch assembly — replaces both Frigidaire (131763xxx-series) and GE (WH10X-series) OEM door locks in a single aftermarket part Locks the washer door during the wash and spin cycles and signals the control board that the door is safely closed Resolves E47 error codes on compatible Frigidaire and Electrolux washers Rated 120VAC, 50/60Hz — correct electrical specifications for compatible washers 8 terminal connections for the wire harness Dimensions: 4-1/2"L x 3-7/8"W x 1-1/2"H Gray and red matte finish, plastic and metal construction Replaces 35+ OEM and cross-reference part numbers spanning Frigidaire, GE, Electrolux, and universal aftermarket catalogs Often replaced together with the matching door strike (131763310, sold separately) as a paired repair Compatible with Frigidaire, Electrolux, GE, White-Westinghouse, Tappan, Kenmore, Crosley, and Gibson front-load washers Aftermarket replacement built to OEM-equivalent quality standards Quick DIY repair — installs in 15–20 minutes with basic hand tools Product Specifications Part Number 131763256 Also Replaces (GE-side) WH10X27534 Part Type Washer Door Lock and Switch Assembly (Universal Fit) Condition Aftermarket Replacement Application Front-Load Washers (Frigidaire and GE platforms) Voltage 120V AC Frequency 50/60 Hz Terminals 8 Dimensions 4-1/2"L x 3-7/8"W x 1-1/2"H Color Gray / Red Finish Matte Material Plastic / Metal Error Codes Resolved E47 (door lock error) Often Paired With Door Strike (131763310, sold separately) Compatible Brands Frigidaire, Electrolux, GE, White-Westinghouse, Tappan, Kenmore, Crosley, Gibson Installation Notes ⚠️ Unplug Washer Before Starting — Wear Work Gloves Disconnect power before beginning. Wear work gloves to protect your hands. The door lock assembly is mounted on the front panel of the washer just inside the door opening. Open the washer door (if the door is stuck locked, use a putty knife to release the manual override latch through the bottom service opening, then open the door). Peel back the rubber door boot from the front panel edge to expose the mounting screws for the lock assembly — on some models this requires removing the spring-loaded wire clamp securing the boot with needle-nose pliers. Photograph the wire harness connections before disconnecting anything — this assembly has 8 terminals, so getting the wire mapping correct on reinstallation is important. Remove the 2 mounting screws holding the lock assembly to the front panel. Reach in and pull the assembly out through the door opening. Disconnect the wire harness plug from the old assembly. Snap the new 131763256 assembly onto the wire harness plug (should click firmly into place), position it in the front panel opening, and secure with the 2 mounting screws. Press the rubber door boot back into the groove at the front panel and reinstall the spring-loaded wire clamp if applicable — this is the trickiest part of the install. Restore power and test by closing the door and starting a cycle to confirm the door locks and the washer runs normally. Tools needed: Phillips screwdriver, needle-nose pliers, putty knife (for stuck doors), work gloves. Frequently Asked Questions Does this really fit both Frigidaire AND GE washers? Yes — this is one of those cases in front-load washer parts where an aftermarket door lock assembly has been designed to serve as a direct replacement for both the Frigidaire 131763xxx-series and the GE WH10X-series door locks. The two OEM assemblies share the same physical dimensions, 8-terminal wire harness configuration, and mounting geometry, allowing a single aftermarket part to function correctly in both platforms. Compatible models span Frigidaire's Affinity series, GE's WCCH/WPXH/WSSH/WSXH series, and select Electrolux, Kenmore, Crosley, White-Westinghouse, Tappan, and Gibson front-load washers. Always verify your specific model number before ordering. What does error code E47 mean on my Frigidaire washer? E47 on Frigidaire and Electrolux front-load washers indicates a door lock circuit fault — the control board is not receiving the expected signal from the door lock assembly to confirm the door is closed and locked. This is typically caused by a failed door lock assembly, but can also be caused by a broken door strike (which physically enters the lock), a damaged wire harness, or a control board issue. Replacing the 131763256 door lock resolves E47 when the lock is the cause; if the code returns after replacement, check the strike and the wire harness next. My washer won't drain and won't spin — is the door lock the problem? Possibly, yes. Front-load washers block drain and spin operations whenever the control board can't confirm the door is locked — this is a safety measure to prevent water release and drum spinning while the door might be open. If your washer fills but won't advance to drain and spin, and there are no obvious pump or motor problems, a failed door lock is a common cause even though the symptom doesn't directly say "door." The failure can also manifest as "won't fill" or "unusual noise" during cycle transitions. Testing the door lock with a multimeter (or replacing it as a diagnostic step given the low cost) is a good first move for these symptoms. My washer door is stuck closed — how do I get it open to install this? If the door is stuck in the locked position because of a failed door lock, you can use a putty knife or thin flat tool to manually release the lock through the bottom service opening at the front of the washer. Reach in through the access panel at the lower front and locate the manual release lever or latch on the back of the door lock assembly — gently push or pry it to release the mechanism. The door should then open. Once open, you can proceed with the installation. Always disconnect power from the washer first. Do I need to replace the door strike (131763310) too? Not always, but often. The door strike is the matching component mounted on the washer door itself — it's the part that the lock's latching mechanism grips when the door closes. If the strike is worn, cracked, or its plastic teeth are broken, the new lock won't engage reliably even if it's working perfectly. Inspect the strike on the door for visible damage before ordering just the lock. Many repair scenarios call for replacing both at the same time since both wear together and the parts complement each other. The matching strike is part number 131763310 (sold separately). Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Frigidaire, GE, or Electrolux OEM part, but is manufactured from plastic and metal to match the dimensions (4-1/2"L x 3-7/8"W x 1-1/2"H), electrical specifications (120V AC, 50/60Hz), 8-terminal wire harness configuration, and lock engagement function of the original door lock assemblies it replaces across multiple manufacturers' catalogs. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO WH12X10334 Washer Lid Switch with Wire Harness The XPARTCO WH12X10334 is an aftermarket replacement washer lid switch assembly with wire harness compatible with select GE, Hotpoint, RCA, and Kenmore top-load washers — including the GTWN4250, GCWN4950, GTW180, GTWN2800, GTWN5550, GTUP270, and HSWP1000 series. The lid switch is a magnetic switch mounted near the lid hinge that detects whether the washer lid is open or closed. A magnet attached to the lid activates the switch when the lid closes — a small pin on the switch presses against an internal lever to signal the control board that it is safe to agitate or spin. This safety mechanism prevents the washer from running with the lid open. When the lid switch fails, the washer may not start, may fill with water but not proceed to the wash cycle, may stop mid-cycle, may not spin or agitate even with the lid closed, or may display lid-related error codes on models with digital displays. This assembly includes the switch and attached wire harness. It directly replaces WH12X10141, AP3968471, 1256927, AH1482372, EA1482372, and PS1482372. Installs in 20–30 minutes with basic hand tools. Quick Answer The XPARTCO WH12X10334 Washer Lid Switch fixes GE, Hotpoint, RCA, and Kenmore top-load washers that won't start, fill but don't proceed to wash, stop mid-cycle, or won't spin or agitate with the lid closed. Magnetic switch with wire harness — pin-and-lever design. Replaces WH12X10141, AP3968471, 1256927, AH1482372, EA1482372, PS1482372. Compatible with GE GTWN4250, GCWN4950, GTW180, GTWN2800, GTWN5550, GTUP270, and Hotpoint HSWP1000 series. Common Problems This Part Fixes Washer not starting — lid switch not signaling the lid is closed Washer filling with water but not proceeding to the wash cycle Washer stopping mid-cycle even though the lid is closed Washer not agitating or spinning despite the lid being closed Washer running intermittently — switch contact making and losing connection Lid-related error codes displayed on models with digital control panels Washer running with the lid open — switch stuck closed (less common but possible safety concern) Replaces Part Numbers This lid switch assembly directly replaces the following OEM and cross-reference part numbers: WH12X10334, 1256927, AGE26415, AH1482372, AP3968471, EA1482372, EAP1482372, PD00001112, PS1482372 If your part number is not listed above, contact our support team before ordering and we will verify compatibility. Compatibility This lid switch assembly is compatible with select top-load washers from the following brands and series: GE top-load washers — GTWN4250D0WS, GTWN4250D1WS, GTWN4250M1WS series GE top-load washers — GCWN4950D2WS series GE top-load washers — GTW180SCJ0WW series GE top-load washers — GTWN2800D0WW series GE top-load washers — GTWN5550D0WW series GE top-load washers — GTUP270EM4WW series Hotpoint top-load washers — HSWP1000M4WW series RCA top-load washers (select GE-built models) Kenmore / Sears top-load washers (select GE-built models) Always verify your appliance model number before ordering. Contact our support team if you're unsure. Key Features Magnetic lid switch detects whether the washer lid is open or closed and signals the control board accordingly Pin-and-lever design — the lid's magnet activates the switch, which presses an internal pin against a lever to confirm the lid is closed Prevents the washer from agitating or spinning when the lid is open — important safety function Includes pre-attached wire harness for direct connection to the washer's wiring Replaces WH12X10141, AP3968471, 1256927, AH1482372, EA1482372, and PS1482372 Compatible with GE, Hotpoint, RCA, and Kenmore top-load washers Aftermarket replacement built to OEM-equivalent quality standards DIY repair — installs in 20–30 minutes with basic hand tools Product Specifications Part Number WH12X10334 Part Type Washer Lid Switch Assembly with Wire Harness Condition Aftermarket Replacement Application Top-Load Washers Switch Type Magnetic, pin-and-lever activation Includes Lid switch and attached wire harness Compatible Brands GE, Hotpoint, RCA, Kenmore Installation Notes ⚠️ Unplug Washer Before Starting — Wear Work Gloves Disconnect power before beginning. Wear work gloves to protect your hands. The lid switch is located near the lid hinge area at the top of the washer cabinet. Use a putty knife to release the spring clips along the front edge of the top panel (or console, depending on model), then lift the top panel to access the switch from underneath. Locate the lid switch — it is typically mounted near the hinge or under the console. Photograph the wire connections before disconnecting. Disconnect the wire harness connector, or if your model requires it, cut and splice the wires using wire strippers and crimpers. Remove the mounting screws (typically a 1/4" nut driver) and remove the old switch. Install the new WH12X10334 switch in the same position, secure the mounting screws, and reconnect or re-splice the wire harness. Reinstall the top panel by aligning and pressing down until the spring clips engage. Restore power and test by closing the lid and starting a cycle to confirm the washer agitates and spins normally. You can test the old switch's continuity with a multimeter before removal to confirm it has failed. Tools needed: Putty knife, 1/4" nut driver, wire strippers, crimpers. Frequently Asked Questions What does the washer lid switch do? The lid switch is a safety device that detects whether the washer lid is open or closed. A magnet attached to the underside of the lid activates the switch when the lid closes, which presses a small pin against an internal lever to send a signal to the control board confirming the lid is securely shut. The washer's control board uses this signal to allow agitation and spin — both of which are blocked whenever the lid is detected as open, as a safety measure to prevent injury from a spinning or moving basket. My washer fills with water but won't start the wash cycle — is it the lid switch? Yes — this is one of the most common lid switch failure symptoms. The washer is able to complete the fill phase because filling is typically not gated by the lid switch, but the agitation and spin phases require lid switch confirmation that the lid is closed. If the switch has failed and is not properly signaling lid closure, the washer fills normally but then stalls before agitating. According to repair technicians, when a washer fills and drains but does not agitate or spin, the lid switch is the first part that should be checked and is often the cause. How do I test if the lid switch has failed? Unplug the washer and access the switch as described in the installation notes. Disconnect the wire harness and set your multimeter to continuity or resistance mode. With the lid closed and the magnet engaging the switch pin, a working switch should show closed continuity. With the lid open (pin released), the switch should show open continuity. If the switch shows the same reading (either always open or always closed) regardless of lid position, the switch has failed and needs replacement. Could a bad lid switch cause water filling and draining issues too? In some specific cases, yes — some owners have reported resolving combinations of fill, drain, and spin issues by ultimately tracing the root cause back to a faulty lid switch, even after replacing other components like the water level pressure switch or control board. If you've already addressed other suspected causes for irregular cycle behavior and the symptoms persist, testing or replacing the lid switch is a low-cost troubleshooting step worth trying before assuming a major component (like the control board) needs replacement. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured to match the magnetic switch design and wire harness configuration of the original WH12X10334 lid switch assembly. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO WH11X39237 Washer Drain Pump The XPARTCO WH11X39237 is an aftermarket replacement drain pump and filter assembly compatible with select GE, GE Profile, and GE 2-in-1 Washer/Dryer Combo front-load washers in the GFW510, GFW550, GFW650, GFW655, GFW850, PFW, and PFQ series. The drain pump is responsible for removing water from the washer drum during the drain and spin cycles — when it fails, the washer will not drain, will leave standing water in the drum, or will produce unusual noises during the drain cycle. This complete drain pump and filter assembly operates at 120V, 60Hz, 1.2A and includes the pump motor, impeller housing, and integrated filter. It directly replaces the discontinued WH11X29539 — WH11X39237 is the current manufacturer-approved updated part number. Also replaces AP6986715, 4962370, B25-3A04, and several additional cross-reference numbers. Installs in 30–45 minutes with basic hand tools. Quick Answer The XPARTCO WH11X39237 Washer Drain Pump fixes GE front-load washers that won't drain, leave standing water in the drum, display drain error codes, or make loud humming or grinding noises during the drain cycle. Complete pump and filter assembly. 120V/60Hz/1.2A. Replaces discontinued WH11X29539. Compatible with GE GFW510, GFW550, GFW650, GFW655, GFW850, PFW, and PFQ series. Common Problems This Part Fixes Washer not draining — standing water remaining in the drum after a cycle Drain error codes displayed on GE front-load washers (e.g. E23, E24, or pump-related codes) Loud humming, grinding, or buzzing noise during the drain cycle Washer stopping mid-cycle due to a drain fault Water leaking from around the drain pump area Drain pump running continuously but water not being expelled Pump impeller jammed by debris and motor burned out Replaces Part Numbers This drain pump directly replaces the following OEM and cross-reference part numbers: WH11X39237, WH11X29539, Hanyu B25-3A04, 9019841, PD00094541, AGE1260100, AP8054992, PS18351790. WH11X39237 is the current manufacturer-approved replacement for the discontinued WH11X29539. If your appliance documentation lists WH11X29539, this is the correct updated part. Compatibility This drain pump is compatible with select front-load washers and laundry combos from the following GE product lines: GE front-load washers — GFW510 series GE front-load washers — GFW550 series GE front-load washers — GFW650 series GE front-load washers — GFW655 series GE front-load washers — GFW850 series GE Profile front-load washers — PFW870, PFW950, PFW955 series GE Profile front-load washers — PFQ83 series GE 2-in-1 Washer/Dryer Combo (select models) Always verify your appliance model number before ordering. Contact our support team if you're unsure. Key Features Complete drain pump and filter assembly — pump motor, impeller housing, and integrated filter all included Removes water from the drum during drain and spin cycles for proper washer operation Integrated filter traps lint, coins, and debris to prevent pump impeller damage and clogs Electrical specs: 120V, 60Hz, 1.2A — correct for compatible GE front-load models WH11X39237 is the current manufacturer-approved replacement for discontinued WH11X29539 Direct replacement — installs into existing pump housing with no modification required Aftermarket replacement built to OEM-equivalent quality standards Compatible with GFW510, GFW550, GFW650, GFW655, GFW850, PFW, and PFQ series DIY-friendly repair — installs in 30–45 minutes with basic hand tools Product Specifications Part Number WH11X39237 Supersedes WH11X29539 (discontinued) Part Type Washer Drain Pump and Filter Assembly Condition Aftermarket Replacement Application GE Front-Load Washers and 2-in-1 Washer/Dryer Combos Voltage 120V AC Frequency 60 Hz Amperage 1.2A Includes Pump motor, impeller housing, and integrated filter Compatible Series GFW510, GFW550, GFW650, GFW655, GFW850, PFW870, PFW950, PFW955, PFQ83 Compatible Brands GE, GE Profile Installation Notes ⚠️ Unplug Washer and Shut Off Water Before Starting Disconnect power and turn off the water supply before beginning any repair. Place towels and a shallow pan under the pump access area to catch residual water. Remove the front lower access panel of the washer. Before removing the pump, first clean the pump filter (WH23X38617) and check for a clogged filter or debris in the pump housing — a jammed impeller is sometimes mistaken for a failed pump. If the pump motor is confirmed failed, disconnect the wire harness and drain hoses from the old pump assembly, then unscrew or unclip the pump from the mounting bracket. Install the new WH11X39237 pump assembly, reconnect the drain hoses and secure with clamps, reconnect the wire harness, and reinstall the access panel. Restore power and water supply, then run a drain-only cycle to verify proper drainage and check for leaks. Tools needed: Phillips screwdriver, pliers, shallow pan or towels. Frequently Asked Questions What is the difference between WH11X39237 and WH11X29539? These are the same drain pump assembly — WH11X39237 is the current updated part number that GE issued to replace the discontinued WH11X29539. If your washer's documentation, parts diagram, or old pump label shows WH11X29539, the WH11X39237 is the correct replacement to order. Should I check the pump filter before replacing the drain pump? Yes — always check and clean the pump filter (WH23X38617) before replacing the drain pump. A heavily clogged filter can restrict water flow enough to mimic pump failure symptoms, and a foreign object jammed in the impeller can stall the pump motor without permanently damaging it. Remove the filter, clear any debris from the housing and impeller, and test the washer again. If the pump still fails to drain after cleaning, then pump replacement is the next step. How do I know if my drain pump has failed? A failed drain pump typically causes the washer to stop mid-cycle with a drain error code, or to finish a cycle with standing water in the drum. You may also hear a loud humming noise during the drain phase — this indicates the motor is running but the impeller is not turning (jammed or broken). A grinding noise suggests physical damage to the impeller or pump housing. If the pump is completely silent during the drain cycle despite power being delivered to it, the motor has likely burned out. Is the WH11X39237 compatible with GE Profile and GE 2-in-1 models? Yes — the WH11X39237 is compatible with select GE Profile front-load washers in the PFW870, PFW950, PFW955, and PFQ83 series, as well as select GE 2-in-1 Washer/Dryer Combo models. Always verify your specific model number before ordering to confirm compatibility. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured to match the electrical specifications and physical dimensions of the original WH11X39237 drain pump assembly. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

W11700916 Washer Genuine OEM Door Latch – Compatible with Whirlpool, Maytag, Amana, and Crosley Washers Product Description Ensure your washer door locks securely and operates safely with the W11700916 Washer Genuine OEM Door Latch. This factory-approved latch assembly detects whether the washer door is closed and locks it during operation to prevent leaks or accidental openings. A faulty latch can cause error codes, interrupted cycles, or prevent the washer from starting. Replacing it with this genuine OEM part restores proper function and reliable performance. Replaces Part Numbers W11700916, W11394572, W11032875, W11543566, PD00085319, EAP17217010, AP7219279, PS17217010.  Compatibility This genuine door latch is compatible with select Whirlpool, Maytag, Amana, and Crosley front-load washers. Example compatible models include (but are not limited to): Whirlpool WFW5605MW0, Maytag MHW5630HW3, and Amana NFW5800HW0. Always verify your washer’s model number before ordering. Contact our support team if you’re unsure. ✅ Key Features 🔄 Genuine OEM Replacement – Factory-tested latch for Whirlpool-brand washers 🔒 Secure Door Locking – Prevents accidental opening during wash cycles 💰 Reliable & Durable – Genuine OEM construction for long service life 🛠️ DIY Installation – Installs easily with basic tools in under 30 minutes 🛡️ Fixes Common Issues – Resolves door lock error codes and cycle interruptions 📐 Product Specification Part Number: W11700916 Component Type: Washer Door Latch Assembly Material: Reinforced plastic housing with electrical switch and locking mechanism Mounting: Direct-fit replacement Operating Conditions: Designed for residential front-load washers Compliance: Genuine OEM certified 🛠️ Installation Notes Tools Needed: Phillips screwdriver, Torx driver ⚠️ Safety First: Always unplug the washer before starting repairs to prevent electrical shock. Steps: Disconnect washer from power. Open the door and remove the retaining ring securing the door boot seal. Pull back the seal to access the latch assembly. Remove screws holding the old latch in place. Disconnect the wire harness and remove the latch. Install the new W11700916 latch, reconnect wires, and secure with screws. Reattach the boot seal and retaining ring, then restore power. ⏱️ Time Required: 20–30 minutes 📦 Shop With Confidence 🚚 Free Shipping on All Orders 🛠️ Trusted Appliance Parts Supplier 🔄 30-Day Return Policy Solve door lock errors and restore safe washer operation — Add to Cart Now for a factory-approved repair!
