Washer Control Knobs, Agitators & Latches

XPARTCO WE01X30638 Laundry Center Control Knob The XPARTCO WE01X30638 is an aftermarket replacement control knob compatible with select GE, Hotpoint, RCA, and Kenmore GE-built laundry centers (stacked washer/dryer combination units). The control knob mounts on the timer or cycle selector shaft on the laundry center's control panel — it's what you grip and turn to choose wash cycles, dry cycles, and timer settings on both the washer and dryer sections of the unit. Because a stacked laundry center's knobs get twice the daily use of a standalone appliance (one control panel serving both washer and dryer functions), cracked and stripped knobs are one of the most common repairs on these units. Constructed from durable black ABS plastic with a polished silver edge ring and an internal metal plate insert that grips the D-shaped control shaft — allowing precise detent positioning so you land exactly on your desired cycle setting. Approximately 2" in diameter with thick inner walls to resist the cracking that plagues aging original knobs. Snap-on installation — pulls straight off, pushes back on, no tools required. This is the current production version, directly superseding WE01X24776. It also replaces 4961358, AP6996856, PS16226089, and EAP16226089. Installs in under 1 minute — no tools required. Quick Answer The XPARTCO WE01X30638 Laundry Center Control Knob replaces a cracked, stripped, or missing control knob on GE, Hotpoint, RCA, and Kenmore GE-built stacked laundry centers. Black ABS plastic with polished silver edge, ~2" diameter, internal metal plate for a firm shaft grip. Snap-on — no tools required. Current part superseding WE01X24776; also replaces 4961358, AP6996856, PS16226089, EAP16226089. Compatible with GE GUD27ESPM0DG, GUD27ESPM1DG, GUD27GSPM0DG, GUD27GSPM1DG and related GUD27 series laundry centers. Common Problems This Part Fixes Control knob cracked or split from age and repeated use — the most common failure on GUD27-series laundry centers Knob spinning freely on the shaft — internal grip stripped, no longer changing settings when turned Knob difficult to turn or not responding — worn internal metal plate no longer engaging the shaft Knob missing entirely from the control panel Knob loose and wobbling on the shaft — imprecise cycle selection Hairline cracks visible around the knob's shaft opening — early-stage failure that will soon strip Knob damaged from impact or overtightened grip Replacing multiple aging knobs at once — original knobs from the same production era tend to crack around the same time Cross Reference Information Part numbers can change over a product's lifecycle as manufacturers update designs or release new appliance models. For your convenience, we've included any known superseded, alternate, or cross-reference part numbers that match this item. Replaces Part Numbers This laundry center control knob directly replaces the following OEM and cross-reference part numbers: WE01X30638, WE01X24776, AGE25575, AP6996856, EAP16226089, PD00068517, PS16226089. WE01X30638 is the current production part superseding WE01X24776. Contact our support team with your model number if you need confirmation before ordering. Compatibility This control knob is compatible with select laundry centers (stacked washer/dryer units) from the following brands: GE laundry centers — GUD27ESPM0DG (electric dryer) and GUD27ESPM1DG series GE laundry centers — GUD27GSPM0DG (gas dryer) and GUD27GSPM1DG series GE laundry centers — related GUD27 series models (verify with parts diagram) Hotpoint laundry centers (select GE-built models) RCA laundry centers (select GE-built models) Kenmore / Sears laundry centers (select GE-built models) Tip: If one knob on your laundry center has cracked, inspect the others — knobs from the same production era typically develop cracks around the same time. Since the replacement takes seconds and the knobs are identical, many customers order two or more at once and replace them all in a single session, avoiding a repeat order a few months later. This knob is approximately 2" in diameter — confirm your original knob's size matches before ordering. Key Features Control knob for laundry center timer and cycle selection — installs on the control panel shaft Durable black ABS plastic construction with thick inner walls — resists the cracking common on aging original knobs Polished silver edge ring for a clean, modern look that matches GE laundry center styling Internal metal plate insert grips the D-shaped control shaft firmly — precise detent positioning for accurate cycle selection Approximately 2" diameter with smooth mirror-polished surface for a comfortable grip Snap-on installation — pulls straight off the shaft, pushes back on; no tools or hardware required Current production part — directly supersedes WE01X24776 Replaces 4961358, AP6996856, PS16226089, and EAP16226089 Compatible with GE GUD27ESPM0DG/1DG and GUD27GSPM0DG/1DG laundry centers, plus Hotpoint, RCA, and Kenmore GE-built models Aftermarket replacement built to OEM-equivalent quality standards Quick replacement — installs in under 1 minute Product Specifications Part Number XPWE01X30638 Supersedes WE01X24776 Part Type Laundry Center Control Knob (Timer / Cycle Selector) Condition Aftermarket Replacement Application Laundry Centers / Stacked Washer-Dryer Units (GE platform) Diameter Approximately 2" Color Black with polished silver edge Material ABS plastic with internal metal plate insert Shaft Type D-shaped shaft receiver Installation Snap-on — no tools required Compatible Brands GE, Hotpoint, RCA, Kenmore (GE-built) Installation Notes ⚠️ Unplug Laundry Center Before Starting — Quick Toolless Replacement Disconnect power before beginning as a general safety precaution. Locate the old control knob on the laundry center's control panel. Grip the knob firmly and pull it straight off the control shaft — it should come off with a moderate pull (no tools required). If the knob is cracked and spinning without releasing, wrap a soft cloth around it for extra grip, or gently pry it off with a plastic tool (avoid metal tools that could scratch the control panel). Once the old knob is off, inspect the metal control shaft — note the D-shape (flat side) of the shaft. If the shaft itself is damaged, worn round, or the timer behind it feels loose, the underlying timer or switch may also need attention. Align the new WE01X30638 knob's internal D-shaped receiver with the flat side of the shaft and push it firmly straight on until it seats fully. Rotate the knob through its full range to confirm it clicks into each detent position cleanly and the indicator lines up with the panel markings. Restore power and run a quick test cycle. If replacing multiple knobs, repeat for each position — they're all identical on compatible GUD27-series units. Tools needed: None (soft cloth optional). Frequently Asked Questions Why do the knobs on my GE laundry center keep cracking? The original knobs on GUD27-series laundry centers are subject to constant rotational stress concentrated at the D-shaped shaft opening — and on a stacked laundry center, one control panel serves both the washer and dryer, so the knobs see roughly double the daily turning of a standalone appliance's controls. Over years of use, hairline cracks form at the shaft opening and gradually spread until the knob's grip strips and it spins freely. The replacement knob's thick inner walls and internal metal plate insert are designed to resist this failure pattern. If one of your knobs has cracked, check the others — knobs from the same production era typically crack around the same time, and replacing them together saves a repeat order. What's the difference between WE01X30638 and WE01X24776? These are the same control knob across production revisions. WE01X24776 was the earlier GE part number, and WE01X30638 is the current production version that GE issued as its direct replacement. Both are physically and functionally interchangeable — if your laundry center's parts diagram shows WE01X24776, the WE01X30638 is the correct current replacement, and this listing covers both numbers. There may be a very slight color variation between the new knob and your aged originals, but the fit and function are identical. How do I remove the old knob if it's cracked and just spins? When the internal grip has stripped, the knob spins on the shaft instead of pulling off cleanly. Wrap a soft cloth around the knob for extra grip and pull firmly straight out while wiggling slightly. If that doesn't work, gently work a plastic pry tool (a plastic putty knife or old credit card) behind the knob's base and lever it outward evenly around its circumference. Avoid metal tools, which can scratch the control panel. If the knob is badly cracked, you can also carefully break away the remaining plastic to free it from the shaft. Once removed, the new knob pushes straight on. Does this knob work for both the washer and dryer controls on my laundry center? Yes — on compatible GUD27-series laundry centers, the control knobs across the panel are the same part, whether they operate washer cycle selection, dryer timer, or other rotary controls that use the same D-shaped shaft. If you're replacing more than one knob, a single part number covers all matching positions. Just confirm each position's knob is the same ~2" diameter style before ordering multiples — if your unit has a visibly different-sized knob at any position, verify against the parts diagram first. Is this an OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine GE OEM part, but is manufactured from durable ABS plastic with an internal metal plate insert to match the dimensions (~2" diameter), D-shaped shaft receiver, snap-on installation, and appearance of the original WE01X30638/WE01X24776 control knob used in compatible GE, Hotpoint, RCA, and Kenmore GE-built laundry centers. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Quality Aftermarket Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

XPARTCO W11457841 Washer Lid Latch Strike The XPARTCO W11457841 is an aftermarket replacement washer lid latch strike compatible with select Whirlpool, Maytag, and Kenmore HE top-load washers — including the Whirlpool WTW5100, WTW5105, WTW6120, WTW7120, WTW8120, WTW8127 series, and the Maytag MVW6200, MVW6230, MVW7230, MVW7232, MVW8230 series. The lid latch strike is the plastic component attached to the underside of the washer lid that physically engages the lid lock mechanism when the lid is closed. As the lid lowers into place, the latch strike enters the lock slot and activates the lid switch — signaling the control board that the lid is securely closed and the washer is safe to start agitation and spin. When the lid latch strike fails — typically by breaking off, cracking, or wearing down — the lid lock can't be properly activated, and the washer will not start, will stop mid-cycle, or will refuse to advance to the spin cycle. This W11457841 aftermarket replacement is built to OEM-equivalent specifications and supersedes the earlier W11091027. It also replaces 4959179, AP6987306, EAP16218028, PD00061788, and PS16218028. Installation is fast and simple — a counterclockwise twist removes the old strike, and a clockwise twist installs the new one. Installs in under 5 minutes, no special tools required. Quick Answer The XPARTCO W11457841 Washer Lid Latch Strike fixes Whirlpool, Maytag, and Kenmore HE top-load washers that won't start, won't lock the lid, stop mid-cycle, or won't advance to spin because the lid strike is broken or worn. Plastic latch strike that attaches to the underside of the washer lid and activates the lid lock and switch. Twist-in installation. Genuine OEM. Replaces W11091027, 4959179, AP6987306, EAP16218028, PD00061788, PS16218028. Compatible with Whirlpool WTW5100/5105/6120/7120/8120/8127 and Maytag MVW6200/6230/7230/7232/8230 series. Common Problems This Part Fixes Washer not starting — lid latch strike not engaging the lid lock Lid won't lock at the start of the cycle Washer stops mid-cycle with a lid-related fault Washer fills with water but won't agitate or advance to spin Lid latch strike visibly broken, cracked, or missing on the underside of the lid Latch strike worn down — physically fits the lock slot but no longer activates the lid switch Repeated lid lock errors despite the lid appearing to close normally Replaces Part Numbers This washer lid latch strike directly replaces the following OEM and cross-reference part numbers: W11457841, W11091027, AP6987306, AWP44638, PD00061788, EAP16218028, PS16218028. W11457841 is the current production part superseding W11091027. Contact our support team with your model number if you need confirmation before ordering. Compatibility This lid latch strike is compatible with select HE top-load washers from the following brands and series: Whirlpool top-load washers — WTW5100HC0, WTW5100HC1, WTW5100HC2, WTW5100HW0, WTW5100HW1, WTW5100HW2 series Whirlpool top-load washers — WTW5105HC0, WTW5105HC1, WTW5105HC2, WTW5105HW0, WTW5105HW1, WTW5105HW2 series Whirlpool top-load washers — WTW6120HC0, WTW6120HC1, WTW6120HC2, WTW6120HW0, WTW6120HW1, WTW6120HW2 series Whirlpool top-load washers — WTW7120HC0, WTW7120HW0 series Whirlpool top-load washers — WTW8120HC0, WTW8120HW0 series Whirlpool top-load washers — WTW8127LC0, WTW8127LC1, WTW8127LW0 series Maytag top-load washers — MVW6200KW0, MVW6200KW1, MVW6200KW2, MVW6200KW3 series Maytag top-load washers — MVW6230HC0, MVW6230HC1, MVW6230HC2, MVW6230HW0, MVW6230HW1, MVW6230HW2 series Maytag top-load washers — MVW6230RHW0, MVW6230RHW1, MVW6230RHW2 series Maytag top-load washers — MVW7230HC0, MVW7230HW0, MVW7230HW1 series Maytag top-load washers — MVW7232HC0, MVW7232HW0, MVW7232HW2 series Maytag top-load washers — MVW8230HC0 series Kenmore / Sears top-load washers (Whirlpool-built — select 110-series models) Always verify your appliance model number before ordering. Contact our support team if you're unsure. Key Features Aftermarket replacement built to OEM-equivalent quality standards — direct fit for compatible Whirlpool platform washers Plastic latch strike attaches to the underside of the washer lid and engages the lid lock mechanism when the lid closes Activates the lid switch to signal the control board that the lid is securely closed and the washer is safe to start Twist-in/twist-out installation — no tools or hardware required; counterclockwise to remove, clockwise to install Current production part — directly supersedes W11091027 Replaces W11091027, 4959179, AP6987306, EAP16218028, PD00061788, and PS16218028 Compatible with Whirlpool WTW5100/5105/6120/7120/8120/8127 and Maytag MVW6200/6230/7230/7232/8230 series HE top-load washers, plus select Kenmore Whirlpool-built models Fast DIY repair — installs in under 5 minutes Product Specifications Part Number W11457841 Supersedes W11091027 Part Type Washer Lid Latch Strike Condition Aftermarket Replacement Application HE Top-Load Washers (Whirlpool/Maytag/Kenmore platform) Material High-strength plastic Installation Twist-in (clockwise) / twist-out (counterclockwise) — no tools required Mounting Location Underside of washer lid Compatible Brands Whirlpool, Maytag, Kenmore Installation Notes ⚠️ Unplug Washer Before Starting — Wear Work Gloves Disconnect power before beginning. Wear work gloves to protect your hands. Open the washer lid and locate the lid latch strike on the underside of the lid — it's the small plastic peg that drops into the lock slot when the lid is closed. To remove the old latch strike: rotate it counterclockwise until the retaining tab breaks free and pulls back, then pull the old latch strike straight out. To install the new W11457841: align it with the mounting hole in the same orientation as the old one, and rotate clockwise until you hear or feel the retainer tab click into place. Close the lid and confirm the latch strike engages the lock slot properly. Restore power, start a test cycle, and confirm the lid locks and the washer begins normal operation. Tools needed: work gloves only — no tools required for the strike itself. Frequently Asked Questions What's the difference between the lid strike, lid lock, and lid switch? These three components work together as a safety system. The lid latch strike (W11457841) is the small plastic peg attached to the underside of the lid that physically enters the lock slot when the lid closes. The lid lock is the mechanism in the washer cabinet that grips the strike and physically locks the lid closed during the spin cycle. The lid switch is the electrical sensor inside the lock assembly that signals the control board when the strike is engaged. If the strike is broken or missing, none of the three can do their job — even if the lock and switch are working perfectly. Replacing just the strike often resolves "won't start" issues without needing to replace the more expensive lock assembly. What is the difference between W11457841 and W11091027? These are the same lid latch strike across production revisions. W11091027 was the earlier OEM part number, and W11457841 is the current part number that superseded it. Both are physically and functionally identical — if your washer's parts diagram shows W11091027, the W11457841 is the correct current replacement, and this aftermarket part covers both numbers. My washer won't start and the lid seems to close normally — could this be the strike? Yes, this is one of the most common symptoms of lid latch strike failure on compatible Whirlpool and Maytag washers. Even though the lid appears to close, if the strike has cracked or worn down it may not physically engage the lock or activate the switch correctly. Visually inspect the latch strike on the underside of the lid — if it's broken, missing, or chipped, replacement is straightforward. If the latch strike looks intact and the washer still won't start, the lid lock assembly itself or the wiring harness may need attention. Do I really not need any tools to install this? Correct — the W11457841 lid latch strike uses a twist-in design with no screws or hardware. To remove the old latch strike, rotate it counterclockwise until the internal retaining tab breaks free, then pull it out. To install the new one, push it into the mounting hole and twist clockwise until it clicks into place. The whole replacement typically takes under 5 minutes once you have the new part in hand. Work gloves are recommended to protect your hands while gripping the small plastic part, but no other tools are needed. Is this a Genuine OEM or aftermarket part? This is an aftermarket replacement part built to OEM-equivalent quality standards. It is not a genuine Whirlpool OEM part, but is manufactured to match the dimensions, twist-in mounting design, and lid switch activation function of the original W11457841 lid latch strike used in compatible Whirlpool, Maytag, and Kenmore HE top-load washers. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Quality Aftermarket Parts ✓ Fast US Shipping ✓ Compatibility Support ✓ Secure Checkout

Read more less

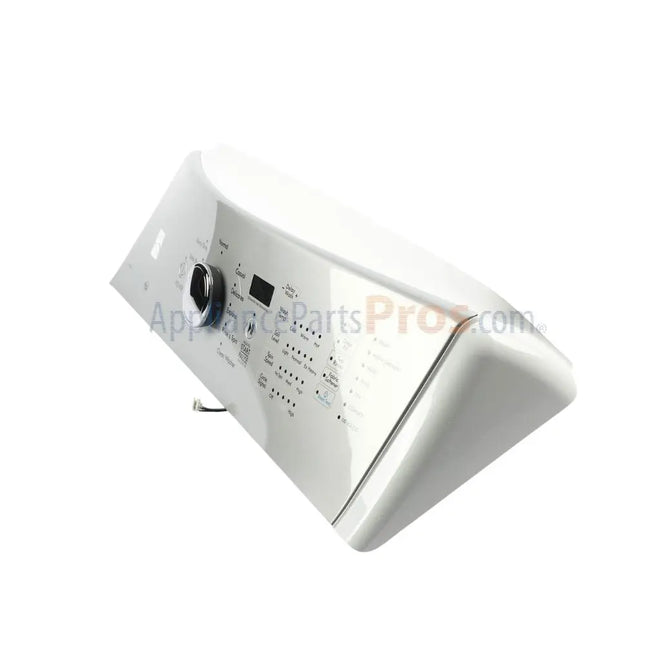

W11248040 Washer Console (Control Panel Housing) Genuine Whirlpool part Replaces Part Number W11248040, 4845509, W11035013, W11120176, W11192407, PD00087512, EAP12584120, AP6783239, PS12584120. Model Cross Reference This part #W11248040 works with all models listed. Kenmore / Sears 110.27132412 Washer Kenmore / Sears 110.27132413 Washer

Read more less

WH03X36897 Washer Genuine OEM Mode Shifter Actuator – Compatible with GE & Hotpoint Washers Product Description Restore proper wash and spin operation with the WH03X36897 Washer Genuine OEM Mode Shifter Actuator. This factory-approved component shifts the washer between agitation and spin modes during the wash cycle. A failing mode shifter can cause the washer to agitate but not spin, spin improperly, make clicking noises, or display cycle errors. Replacing it with this Genuine OEM actuator ensures precise shifting, reliable performance, and correct cycle operation. Replaces Part Numbers WH03X36897, WH18X27186, AP7225424, PD00087767, EAP17626543, PS17626543 Compatibility This Genuine OEM mode shifter actuator fits select GE and Hotpoint top-load washers. Example compatible models include (but are not limited to):GE GTW335ASN1WW, GTW465ASN2WW, GTW485ASJ1WSHotpoint HTW240ASK6WS Always verify your washer’s model number before ordering.Contact our support team if you’re unsure. ✅ Key Features 🧩 Genuine OEM Replacement – Factory-certified for exact fit and dependable operation 🔄 Accurate Mode Shifting – Properly switches between wash and spin cycles 🔇 Quiet, Smooth Operation – Reduces clicking or erratic shifting noises 💪 OEM-Grade Durability – Designed for long service life under repeated cycles 🛡️ Fixes Common Issues – Solves no-spin, improper agitation, or cycle errors 📐 Product Specification Part Number: WH03X36897 Component Type: Washer Mode Shifter Actuator Voltage: 120V AC Mounting: Direct-fit installation on transmission assembly Function: Controls agitation-to-spin shifting Compliance: Genuine OEM certified 🛠️ Installation Notes Tools Needed: Phillips screwdriver, nut driver ⚠️ Safety First: Unplug the washer before servicing to avoid electrical shock. Steps: Disconnect power and tilt the washer back for bottom access. Locate the mode shifter actuator near the transmission. Disconnect the wiring harness and remove mounting screws. Install the new WH03X36897 actuator and secure it in place. Reconnect wiring, return washer upright, and restore power. Run a test cycle to confirm proper shifting. ⏱️ Time Required: 20–30 minutes 📦 Shop With Confidence 🚚 Free Shipping on All Orders ⚙️ Genuine OEM Replacement Part 🔄 30-Day Return Policy Restore correct washer cycle operation — Add to Cart Now for a factory-quality repair!

Read more less

XPARTCO DC66-00777A Washer Pulsator Cap – Compatible with Samsung Washers Product Description Keep your washer operating smoothly with the XPARTCO DC66-00777A Washer Pulsator Cap. This high-quality aftermarket replacement covers the central pulsator bolt, preventing water, detergent, and debris from entering the washer hub. A cracked or missing cap can lead to corrosion, noise, or imbalance during spin cycles. Replacing it with this durable XPARTCO cap restores a secure seal and helps maintain optimal washing performance. Replaces Part Numbers DC66-00777A, PD00025125, EAP8753312, AP5788799, 3282678, PS8753312. Compatibility This replacement pulsator cap fits select Samsung top-load washers. Example compatible models include (but are not limited to): Samsung WA400PJHDWR/AA, WA422PRHDWR/AA, and WA45H7000AW/A2. Always verify your washer’s model number before ordering. Contact our support team if you’re unsure. ✅ Key Features 🔄 Aftermarket Replacement – Matches OEM fit and performance for Samsung washers 💧 Protective Seal – Keeps water and detergent away from the pulsator bolt area 💰 Cost-Effective Solution – Durable and affordable alternative to OEM caps 🛠️ Simple Installation – No tools required; snaps directly into place 🛡️ Fixes Common Issues – Replaces missing or damaged caps to prevent rust and noise 📐 Product Specification Part Number: DC66-00777A Component Type: Washer Pulsator (Washplate) Cap Material: High-strength molded plastic Color: Gray or silver finish (varies by batch) Mounting: Snap-fit installation on top of pulsator bolt Compliance: Built to OEM-equivalent quality standards (not OEM) 🛠️ Installation Notes Tools Needed: None ⚠️ Safety First: Always unplug the washer before performing any maintenance to avoid electrical shock. Steps: Open the washer lid and locate the center of the pulsator (washplate). Remove any remaining parts of the old or damaged cap. Align the new XPARTCO DC66-00777A cap with the pulsator hub opening. Press firmly until it clicks into place. Verify the cap is secure before running a wash cycle. ⏱️ Time Required: Less than 5 minutes 📦 Shop With Confidence 🚚 Free Shipping on All Orders ⚙️ Trusted Appliance Parts Supplier 🔄 30-Day Return Policy Protect your washer from wear and debris — Add to Cart Now for a quick, reliable fix!

Read more less

DC34-00025G Washer Genuine OEM Lid Switch and Lock Assembly – Fits Samsung Washers Product Overview The DC34-00025G Washer Lid Switch and Lock Assembly is a genuine OEM replacement part that ensures your washer lid stays securely locked during wash and spin cycles. This part detects when the lid is closed and locks it to prevent accidental opening, providing safety and proper cycle operation. A worn or broken lid lock can cause your washer to stop mid-cycle, display error codes, or fail to start. Replacing it restores dependable washer performance and safety compliance. Replaces Part Numbers This lid switch and lock assembly replaces DC34-00025G, AP6884125, PS12720530. Manufactured to original equipment specifications for a precise fit and long-term durability. Compatible Brands Compatible with select Samsung top-load washers manufactured by Samsung. Fits a variety of models using this specific lid lock assembly. Fixes the Following Issues Washer won’t start or stops mid-cycle Lid doesn’t lock properly Error codes related to lid switch or lock failure Washer won't enter spin or drain cycles Why Buy from Parts‑O‑Matic Factory-original genuine OEM part Fast and free U.S. shipping Trusted by appliance professionals and DIYers Backed by reliable customer support

Read more less

EBF61674802 Washer Genuine  Lid Switch and Lock Assembly Replaces Part Number: EBF61674802, EBF60665201, AP5785599, PS8751171 Description: The Lid Switch and Lock Assembly is a Genuine OEM parts for select Kenmore, LG washing machine models. It contains both the switch that detects when the lid is closed, as well as the metal lock mechanisms that securely engage the lid during active cycles.

Read more less

WP8181651 Washer Genuine OEM Door Striker Replaces Part Numbers: WP8181651, 8181651, 906446, AP6011711, PS11744910. Description: This Door Strike is a Genuine part for specific Maytag, Kenmore, Whirlpool washing machine models. This component is responsible for providing a secure and proper closure for the washer door, ensuring it seals tightly during operation.

Read more less

WH1X2727 Washer Genuine Damping Strap Replaces Part Numbers: WH1X2727, 2289, WH01X10028, WH01X10046, WH01X2727, WH1X10028, WH1X10046, AH271100, EA271100, AP2044899, PS271100. Description: This Washer Tub Dampening Strap is a Genuine OEM part for select GE washing machine models. It plays a vital role in reducing vibrations and absorbing shocks during the wash cycle to provide stability and minimize excessive movement. Common   causes of a bad dampening strap can include wear and tear over time, exposure to heavy loads or unbalanced loads that put excessive strain on the strap, or damage due to impact or mishandling.

Read more less

W11396717 Genuine OEM Whirlpool Washer Drain Pump Assembly The W11396717 is a Genuine OEM Whirlpool replacement drain pump assembly compatible with select Whirlpool, Maytag, and Kenmore high-efficiency top-load washers — including the Whirlpool WTW5100, WTW6120, WTW7120, WTW8120, and WTW8127 series, and the Maytag MVW6200, MVW6230, MVW7230, MVW7232, and MVW8230 series. The drain pump removes water from the washer tub during the drain portion of each wash cycle. When the pump fails, the washer will not drain, will leave standing water in the tub, stop mid-cycle, or make loud humming, grinding, or rattling noises during the drain phase. Rated 120V, 60Hz, 1.2A (CL.F duty class), this complete pump assembly is mounted to the underside of the outer tub and secured by three mounting screws. It directly replaces the earlier W11263349 as well as 4960510, AP6974116, PS12731177, and EAP12731177. Note: the pump is accessed from the bottom of the washer — the machine must be tilted or laid on its back to reach the mounting screws. Installs in 20–35 minutes with basic hand tools. Quick Answer The W11396717 Genuine OEM Whirlpool Washer Drain Pump fixes Whirlpool and Maytag HE top-load washers that won't drain, leave standing water, stop mid-cycle, or make loud noise during the drain cycle. 120V/60Hz/1.2A CL.F. Mounted on the underside of the outer tub — access by tilting the washer. Replaces W11263349, 4960510, AP6974116, PS12731177, EAP12731177. Compatible with Whirlpool WTW5100/6120/7120/8120/8127 and Maytag MVW6200/6230/7230/7232/8230 series top-load washers. Common Problems This Part Fixes Washer not draining — standing water remaining in the tub after a cycle Washer stopping mid-cycle due to a drain fault Loud humming during the drain phase — motor energized but pump not moving water Grinding or rattling during drain — damaged impeller or worn bearings Clothes excessively wet after a full cycle — pump not fully removing water before spin Water draining very slowly — pump motor weakening below rated performance Water leaking from the pump area underneath the washer Replaces Part Numbers This drain pump directly replaces the following OEM and cross-reference part numbers: W11396717, W11263349, Hanyu B25-3A04, AP6974116, AWP44690, EAP12731177, PD00065247, PS12731177 W11396717 is the current production part number superseding W11263349. If your parts diagram shows W11263349, the W11396717 is the correct current replacement. Contact our support team if you need confirmation before ordering. Compatibility This drain pump is compatible with select HE top-load washers from the following brands and series: Whirlpool top-load washers — WTW5100HC0, WTW5100HW0, WTW5105HC0, WTW5105HW0, WTW6120HC0, WTW6120HW0, WTW7120HC0, WTW7120HC1, WTW7120HW0, WTW8120HC0, WTW8120HW0, WTW8127LC1, WTW8127LW0, WTW8127LW1 and related models Maytag top-load washers — MVW6200KW0, MVW6230HC0, MVW6230HW0, MVW6230RHW0, MVW7230HC0, MVW7230HC1, MVW7230HW0, MVW7230HW1, MVW7232HC0, MVW7232HC1, MVW7232HC2, MVW7232HW0, MVW7232HW1, MVW7232HW2, MVW8230HC0, 7MMVW7230LC0, 7MMVW7230LW0 and related models Kenmore / Sears top-load washers — 11021112021, 11021652020, 11031652020 and related models Note: This pump is mounted on the underside of the outer tub and requires tilting or laying the washer on its back for access. Always verify your model number before ordering. Key Features Removes water from the tub during drain and spin cycles for proper washer operation Rated 120V, 60Hz, 1.2A (CL.F) — correct electrical specifications for compatible HE top-load washers Current production part — directly supersedes W11263349 Mounted on the underside of the outer tub and secured by three mounting screws — tilt or lay washer on its back for access Replaces W11263349, 4960510, AP6974116, PS12731177, EAP12731177, and B25-3A04 Compatible with Whirlpool WTW5100/6120/7120/8120/8127 and Maytag MVW6200/6230/7230/7232/8230 series top-load washers Genuine OEM part manufactured by Whirlpool to factory specifications — guaranteed fit and performance DIY repair — installs in 20–35 minutes with basic hand tools Product Specifications Part Number W11396717 Supersedes W11263349 Part Type HE Top-Load Washer Drain Pump Assembly Condition Genuine OEM Application Whirlpool / Maytag / Kenmore HE Top-Load Washers Voltage 120V AC Frequency 60 Hz Amperage 1.2A Duty Class CL.F Mounting 3 screws on underside of outer tub — tilt washer for access Compatible Brands Whirlpool, Maytag, Kenmore Installation Notes ⚠️ Unplug Washer and Shut Off Water Before Starting — Work Gloves Recommended Disconnect power and turn off the water supply before beginning. Wear work gloves throughout. The drain pump is mounted on the underside of the outer tub — to access it, disconnect the water supply hoses, drain hose, and lid switch wiring, then carefully tilt the washer onto its back or side on a padded surface. Locate the pump on the bottom of the tub. Using a 5/16" nut driver, remove the three mounting screws securing the pump assembly to the tub. Release the two spring clamps with channel-lock pliers and disconnect the inlet and outlet hoses from the pump. Disconnect the wiring harness and remove the old pump. Install the new W11396717 pump in the same position, reconnect hoses and clamps, reconnect the wiring harness, and secure with the three mounting screws. Return the washer to upright, reconnect all hoses and wiring, restore power and water, and run a drain/spin cycle to confirm drainage and check for leaks. Tools needed: Phillips screwdriver, 5/16" nut driver, channel-lock pliers, padded surface for tilting, work gloves. Frequently Asked Questions What is the difference between W11396717 and W11263349? These are the same drain pump assembly across two production revisions. W11263349 was the original part number, and W11396717 is the current updated version that supersedes it. Whirlpool issues updated part numbers when minor engineering changes are made during production. Both are the same pump with the same specifications, dimensions, and function. If your washer's parts diagram shows W11263349, the W11396717 is the correct current replacement to order. Why does accessing this pump require tilting the washer? On compatible Whirlpool WTW and Maytag MVW HE top-load washers, the drain pump is mounted directly to the underside of the outer tub — not on the cabinet side panel or behind a front access panel as on some other models. The pump's three mounting screws are only reachable from below the machine. The standard repair procedure is to unplug and disconnect the washer, tilt it onto its back or side on a padded surface, access the pump from underneath, and return the washer to upright after installation. How do I know if it's the drain pump versus a blocked drain hose? Before replacing the pump, check the drain hose for kinks or blockages — disconnect the hose and blow through it to confirm it is clear. Also check whether the drain hose standpipe height is within the recommended range (typically 39–96 inches from the floor). If the hose is clear and properly positioned but the washer still won't drain, listen during the drain phase: a completely silent drain cycle (motor not running) suggests a failed motor or control board issue, while a humming or grinding noise during drain confirms the pump motor is receiving power but the pump is mechanically failed and needs replacement. Is this pump the same as the W10876600 used in older Whirlpool Cabrio models? No — the W11396717 and the W10876600 are different drain pumps for different Whirlpool top-load washer generations. The W10876600 (and its successor WPW10730972) is used in older Whirlpool Cabrio and Maytag Centennial models. The W11396717 is used in newer WTW5100/6120/7120/8120 and MVW6200/6230/7230/7232/8230 series models. They are not interchangeable — verify your model number before ordering. Is this an OEM or aftermarket part? This is a Genuine OEM part manufactured by Whirlpool to factory specifications. It is the exact same drain pump assembly installed in compatible Whirlpool, Maytag, and Kenmore top-load washers from the factory — guaranteed fit, materials, and performance. Shop With Confidence A U.S.-based appliance parts retailer specializing in genuine OEM and high-quality replacement parts. We stock components for all major appliance brands and offer fast shipping from our U.S. warehouse. Our team is available to help verify compatibility before you purchase. ✓ Fast US Shipping ✓ Genuine OEM Parts ✓ Compatibility Support ✓ Secure Checkout

Read more less

DC97-14421A Genuine OEM Washer Tub Support Description: The Spider Arm Assembly is an OEM component compatible with specific Samsung front-loading washing machines. It is the linkage mechanism connecting the transmission shaft and pulley system inside the drive motor. With integrated spring coils and joints, the multi-armed assembly facilitates smooth rotational movement of the wash basket essential for various cycles such as agitation, spinning, and drainage. Replaces Part Numbers:  DC97-14421A, 2076567, AP4452794, PS4220154.
